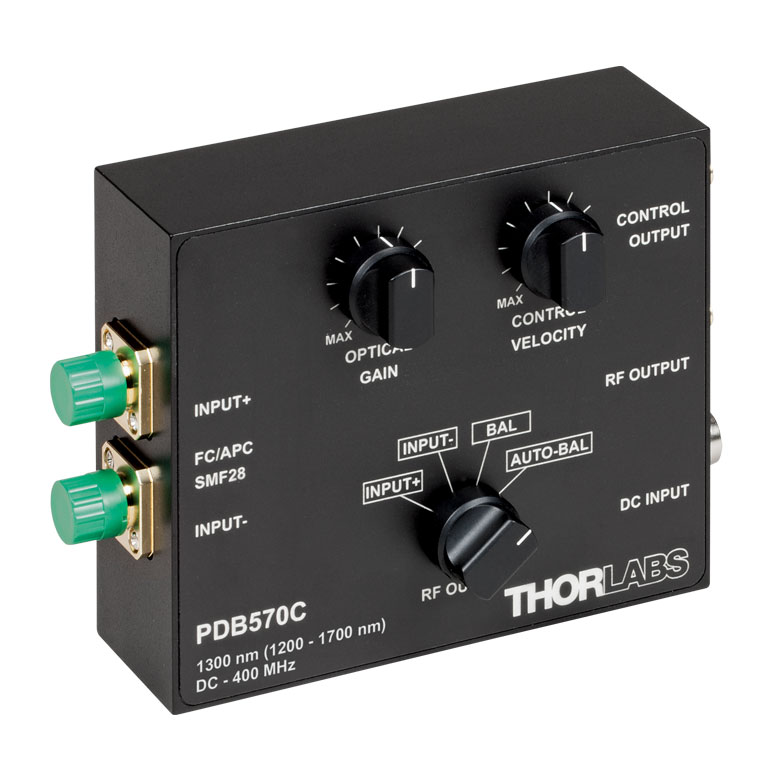

THORLABS PDB570C ເຄື່ອງກວດຈັບການດຸ່ນດ່ຽງອັດຕະໂນມັດກັບ Avalanche Photodiodes (400 MHz, InGaAs APD)
Selected Specifications(a)
Operating Wavelength Range: 1200 - 1700 nm (Optimized for 1300 nm)
Typical Responsivity(b): 0.9 A/W @ 1300 nm
Bandwidth (3 dB; Balanced/Auto-Balanced): DC to 400 MHz
Min NEP (DC to 100 MHz)(c): 1.0 pW/√Hz
Common Mode Rejection Ratio: >25 dB (>35 dB Typical)
Transimpedance Gain, High Z(d): 2 x 103 V/A
Detector Type: InGaAs APD
Internal Coupling Fiber: SMF-28e+
Optical Inputs: FC/APC
(a) For the complete specifications, please see the Specs in manual.
(b) At optical gain M = 1. This value is a general specification for the bare APDs. As used inside the PDB570C, the gain of the APDs can be varied between M = 2.5 and M = 10.
(c) At maximum optical gain (M = 10).
(d) Values for transimpedance gain are lossless gain values, i.e., losses introduced by FC/APC connectors (typically 0.15 to 0.25 dB) are not considered.
