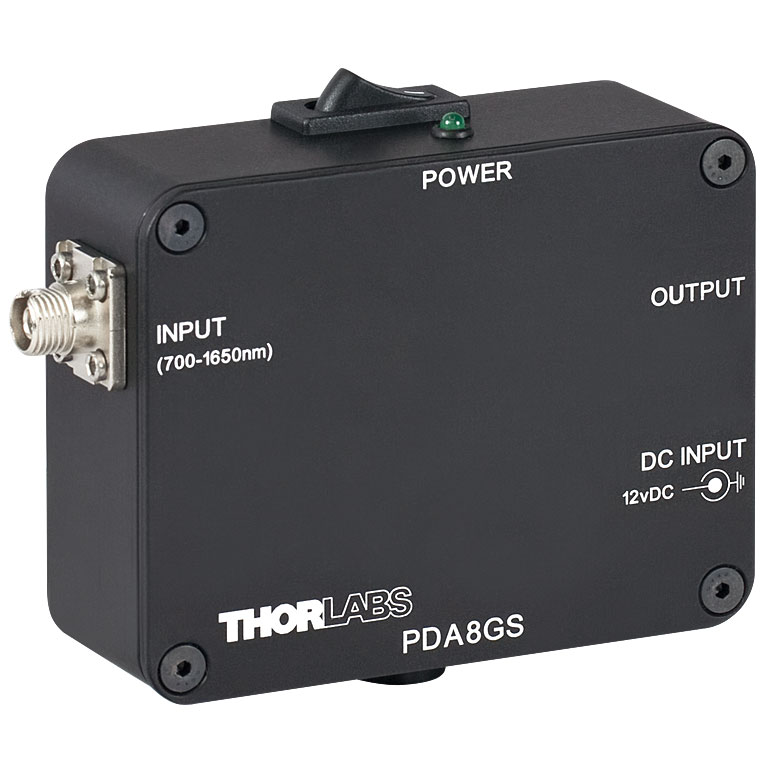

Material: InGaAs
Bandwidth: DC - 9.5 GHz
Wavelength Range: 750 - 1650 nm
Fiber Input: 62.5 µm Core Multimode Fiber
Input Connector(a): FC Bulkhead
Output, 700 mV (Max)(b): SMA - 50 Ω
Peak Response, SM (Typ.): 0.95 A/W @ 1550 nm
Peak Response, MM (Typ.): 0.525 A/W @ 850 nm
Transimpedance Gain: 460 V/A into 50 Ω
Max Optical Power (CW)(b): 1.0 mW
Max Peak Power (Pulsed)(b): 20 mWc
Rise Time: <50 ps
Fall Time: <50 ps
Dark Current: -
NEP (Max): N/A
Junction Capacitance: N/A
Housing Dimensions: 3.0" x 2.38" x 1.1" (76.2 mm x 60.45 mm x 27.94 mm)
(a) Compatible with both FC/PC and FC/APC connectors.
(b) Damage to the photodiode may occur if these maximum ratings are exceeded.
(c) Do not hold peak optical power for longer than a 60 ms burst.
