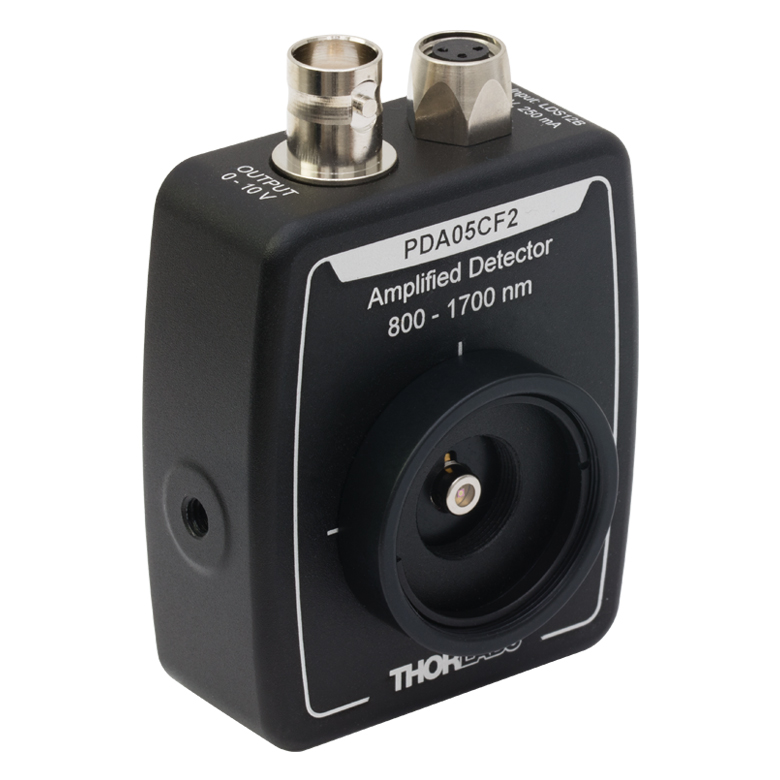

THORLABS PDA05CF2 InGaAs ເຄື່ອງກວດຈັບພາບທີ່ຂະຫຍາຍ (800 - 1700 nm, Fixed Gain, 8-32 / M4 Mounting Holes)

Wavelength Range: 800 - 1700 nm

Bandwidth Range: DC - 150 MHz

Rise Time: 2.3 ns

Gain Hi-Z Load: 10 kV/A

Gain 50 Ω Load: 5 kV/A

NEP: 12.6 pW/Hz^1/2

Active Area(c): 0.2 mm^2 (Ø0.5 µm)(d)

Operating Temperature Range: 10 to 50°C

Power Supply Included: Yes

(c) View an image of the detector element in manual.

(d) The detector active area surface is flush with the front of the housing.

(e) The time required for the signal to rise from 10% to 90% of the maximum value.

(f) Femtosecond Pulsed Input

(g) CW Input
