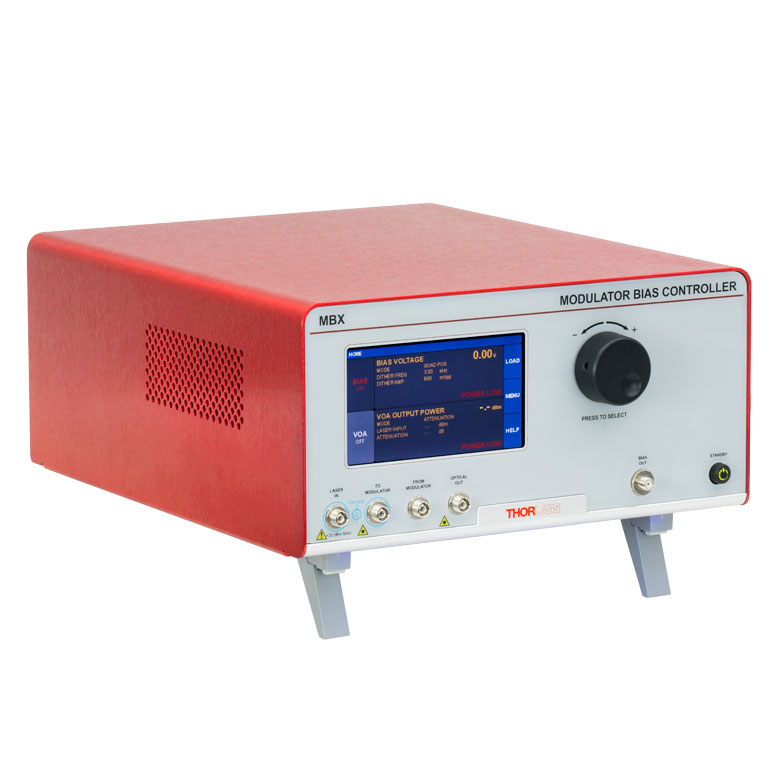

THORLABS MBX ຕົວຄວບຄຸມອະຄະຕິອັດຕະໂນມັດສໍາລັບໂມດູນ Lithium Niobate (LiNbO3). (1250 to 1610 nm)
System
Optical Input Power (from External Laser)
- 20 dBm (Maximum)
- 22 dBm (Absolute Maximum)
Wavelength Range: 1250 to 1610 nm
Power Calibration Points: 1310 nm, 1550 nm, and 1590 nm
Bias Voltage Range: ±10 V
Bias Modes
- Quadrature (Positive and Negative Slope) Peak Null
- Manual (Constant Ratio and Constant Bias)
Dither Frequency Range(b): 1 to 10 kHz
Dither Amplitude Range(b): 20 mV to 2 V
Automatic Mode Settling Time: 1 to 5 s
Internal Optical Fiber
- PM Ports: PM PANDA-Style Fiber
- SM Ports: SMF-28-Compatible Fiber
Internal Control(c)
Power Monitor Accuracy(d): ±0.5 dBm
Power Monitor Resolution(d): 0.01 dBm
Power Monitor Insertion Loss(e): 0.1 dB
VOA Insertion LossL 0.4 dB
VOA Response Time: 1s
Connectors
Fiber Connectors(f): FC/PC, 2.0 mm Narrow Key
Bias Out : SMA Female
I/O: HD DB15
RS-232: DB9
Mechanical
Dimensions: 322.3 mm x 250.0 mm x 134.8 mm (12.69" x 9.84" x 5.31")
Weight: 3.8 kg (8.4 lb)
(a) All values are typical unless noted otherwise.
(b) Adjustable
(c) Specified at 1310 nm, 1550 nm, and 1590 nm.
(d) Applies to all three internal monitors.
(e) Per Monitor
(f) Laser Input and Output to Modulator connectors are PM FC/PC, and Return from Modulator and Final Output connectors are FC/PC.
