General
Bridge Type: AC
Excitation Frequency: 18 kHz
Supply Voltage: ±15 V, +5 V
Monitor Output: 0 - 10 V (SMA Connector)
Top-Panel Display: OLED
Bandwidth: 500 Hz

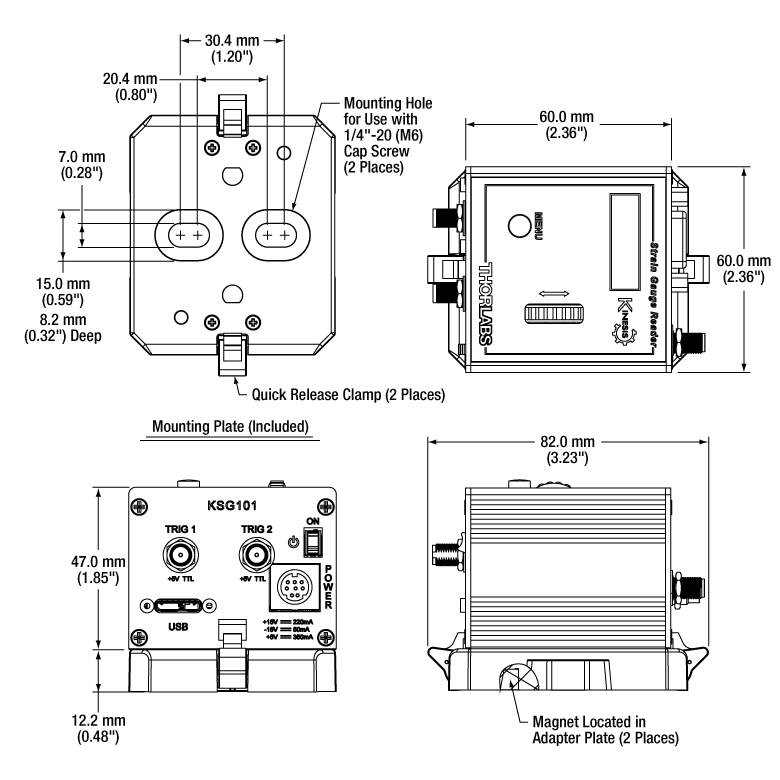

Housing Dimensions(a) (W x D x H): 60.0 mm x 60.0 mm x 49.2 mm (2.36" x 2.36" x 1.94")
Measurement Resolution
Position Mode: 1 nm
Force Mode: 1 mN
Voltage Mode: 1 mV
Ouput/Input Connectors(b)
Strain Gauge Input: 9-Pin D-Type
USB Connector Type: USB 3.0
USB Connection Speed: USB 1.1 Full Speed (12 Mbps)
K-Cube Controller Hub Connector: 26-Way ERNI
Output Monitor(c): SMA, 0 - 10 V
Bidirectional Trigger Ports: SMA, ±5 V
Input Power Requirements
Voltage (Current): +15 V (220 mA), -15 V (50 mA), +5 V (350 mA)
(a) Including Top Panel Controls
(b) Please see the Pin Diagrams for details.
(c) The monitor output is always active and cannot be turned off, thus allowing for the output of the KSG101 to always be viewed.
