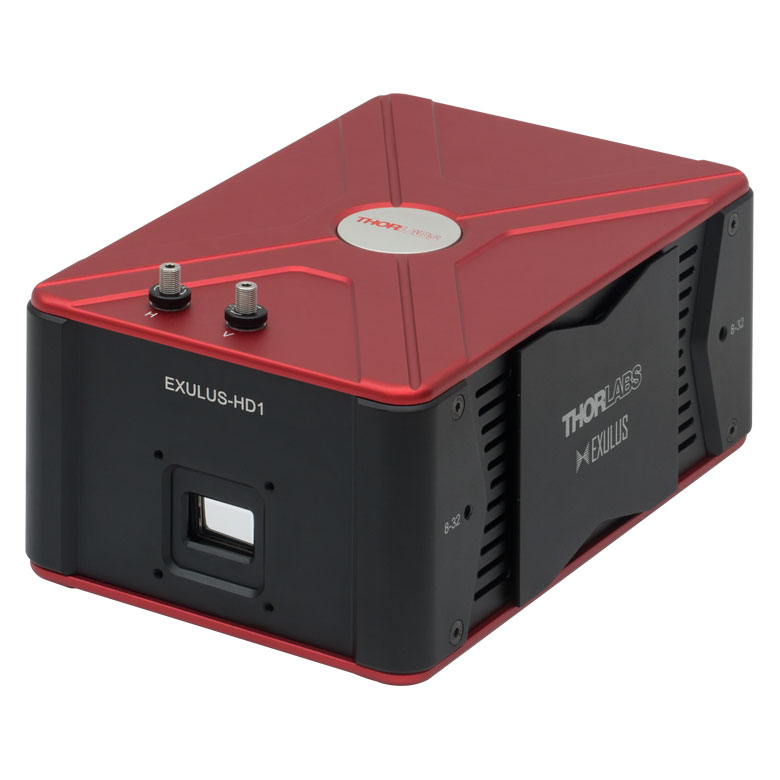

THORLABS EXULUS-HD1 Modulator ແສງສະຫວ່າງພື້ນທີ່ (400 - 850 nm, 8-32 Taps)
Key Specifications(a)
Operating Wavelength: 400 - 850 nm
Panel Resolution: 1920 x 1080 (Full HD)
Fill Factor: >93%
Panel Active Area: 12.5 mm x 7.1 mm
Pixel Pitch: 6.4 µm
Phase / Retardance Range (b): 2π at 633 nm (Standard Mode); 4.7π at 532 nm (Extended Mode)
Frame Rate: 60 Hz (Standard) or 180 Hz (Frame Boost(c))
Fluctuation/Flickering (RMS):<1% (Standard) <5% (Extended)
Output Trigger: N/A
(a) Complete specifications may be found on the manual.
(b) Angles of incidence other than 0° will result in phase shifts that differ from the programmed pattern. Angles of up to 10° are possible without significantly affecting performance.
(c) Frame Boost Mode (referred to as Triple Mode in the software) plays the R, G, and B channels of the video signal in succession, for an overall frame rate of 180 Hz.
