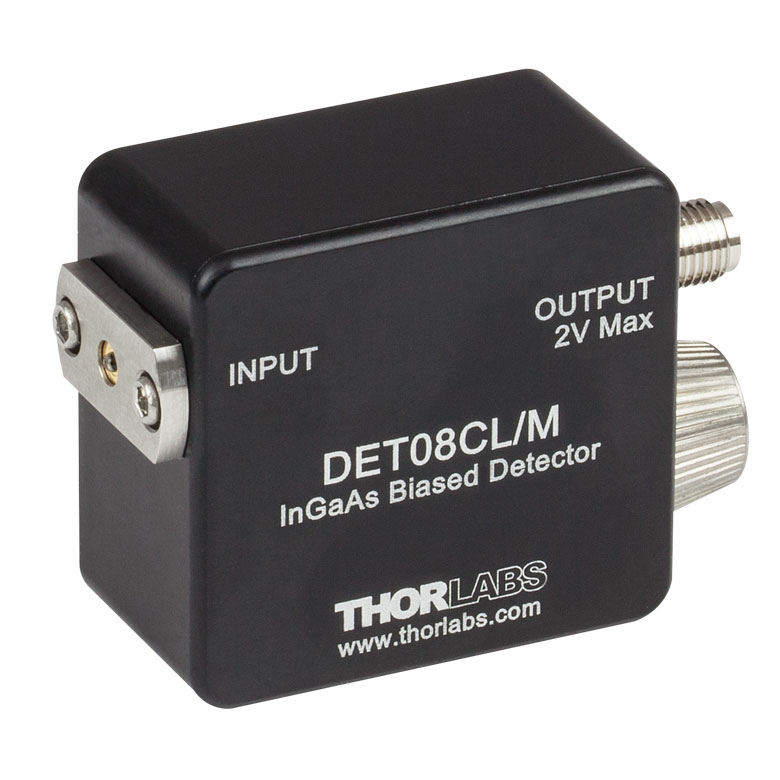

Wavelength Range: 800 - 1700 nm
Material: InGaAs
Active Area: Ø80 µm
Bandwidth (-3 dB)(a,b,c): 5 GHz
Input: Uncoated N-BK7 Ball Lens
Ball Lens Diameter: 0.059" (1.50 mm)
Aperture Size: Ø0.13" (Ø3.2 mm)
Signal Output: SMA
Minimum Resistor Load: 100 mW
Maximum Peak Power: 18 mW
Output Voltaged: 2 V (Max)
Rise Time (tr): 70 ps @ 952 nm, 20%/80%(a,b,c) (Typ.)
Fall Time (tf): 110 ps @ 952 nm, 80%/20%(a,b,c) (Typ.)
Bias Voltage: 12 V
Dark Current(a,e): 1.5 nA
NEP (Maximum): 2 x 10^-15 W/√Hz (@ 1550 nm)
Junction Capacitance: 0.3 pF
Photodiode Element: -
(a) Measured with a specified bias voltage of 12 V.
(b) For a 50 Ω Load
(c) Low battery voltage will result in slower rise times and decreased bandwidth.
(d) A higher output voltage will decrease the bandwidth.
(e) For a 1 MΩ Load
