Sensor Type: Color CMOS
Effective Number of Pixels: 2448 x 2048 (H x V)
Imaging Area: 8.4456 mm x 7.0656 mm (H x V)
Pixel Size: 3.45 µm x 3.45 µm
Optical Format(a): 2/3" (11 mm Diagonal)
Max Frame Rate: 35 fps (Full Sensor)
ADC(b) Resolution: 12 Bits
Sensor Shutter Type: Global
Read Noise: <2.5 e- RMS
Dark Current(c): N/A
Full Well Capacity: ≥10 000 e-
Exposure Time: 0.027 ms to 14235 ms in ~0.013 ms Increments
Vertical and Horizontal Digital Binning(d): 1 x 1 to 16 x 16
Region of Interest (ROI): 260 x 4 Pixels(e) to 2448 x 2048 Pixels, Rectangular
Dynamic Range: Up to 71 dB

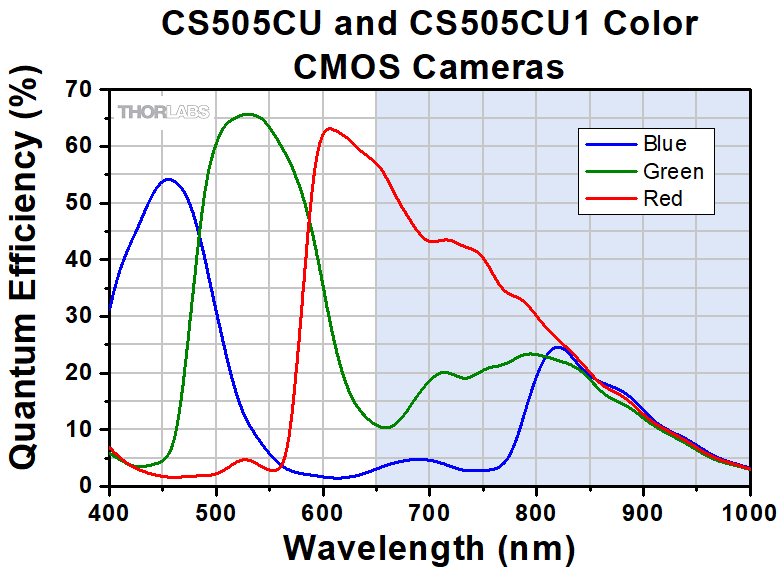

Peak Quantum Efficiency: See Responsivity Plot
Removable Optic: IR Blocking Filter
USB Power Consumption: 3.6 W @ 35 fps (Full Sensor ROI)
Ambient Operating Temperature: 10 °C to 40 °C (Non-Condensing)
Storage Temperature: 0 °C to 55 °C
(a) Click the links for a visual comparison of all the sensor sizes.
(b) ADC = Analog-to-Digital Converter
(c) Dark current is measured with an ROI of 256 x 256 located at the center of the sensor. Dark current will be higher at the periphery due to glow from integrated active circuitry adjacent to the pixel array. Variation from camera to camera should be expected due to sensor manufacturing variability. All measurements were performed in an environmental chamber at 20 °C ambient.
(d) For color cameras, binning greater than 1 x 1 is only available when the camera is operating in unprocessed mode (monochrome).
(e) When Binning at 1 x 1
