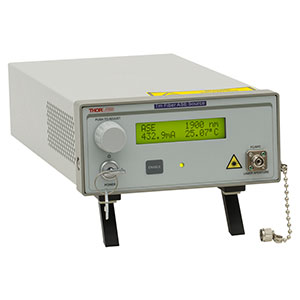

THORLABS ASE1900 ແຫຼ່ງ ASE (Broadband 2 µm)
Parameter Min:
- Emission Center Wavelength: 1860 nm
- Emission Bandwidth (-20 dB): 80 nm
- Drive Current: -
- Output Power at Maximum Drive Current: 40 mW
- Polarization: Unpolarized
- Power Stability (Ambient Temperature ±2 °C): <±1% Over 24 Hours (After 15 minute Warm Up)
- Relative Intensity Noise (RMS, 10 Hz - 1 MHz): 0.05% (Typical)
- Output Fiber Type: SMF-28 Ultra or Equivalent
- Output Fiber Mode Field Diameter (Estimated): 11 µm @ 1900 nm
- Output Fiber NA: 0.14
- Output Fiber Connector: 2.0 mm Narrow Key FC/APC
Parameter Typical:
- Emission Center Wavelength: 1870 nm
- Emission Bandwidth (-20 dB): 100 nm
- Drive Current: -
- Output Power at Maximum Drive Current: 50 mW
- Polarization: Unpolarized
- Power Stability (Ambient Temperature ±2 °C): <±1% Over 24 Hours (After 15 minute Warm Up)
- Relative Intensity Noise (RMS, 10 Hz - 1 MHz): 0.05% (Typical)
- Output Fiber Type: SMF-28 Ultra or Equivalent
- Output Fiber Mode Field Diameter (Estimated): 11 µm @ 1900 nm
- Output Fiber NA: 0.14
- Output Fiber Connector: 2.0 mm Narrow Key FC/APC
Parameter Max:
- Emission Center Wavelength: 1880 nm
- Emission Bandwidth (-20 dB): -
- Drive Current: 450 mA
- Output Power at Maximum Drive Current: 70 mW
- Polarization: Unpolarized
- Power Stability (Ambient Temperature ±2 °C): <±1% Over 24 Hours (After 15 minute Warm Up)
- Relative Intensity Noise (RMS, 10 Hz - 1 MHz): 0.05% (Typical)
- Output Fiber Type: SMF-28 Ultra or Equivalent
- Output Fiber Mode Field Diameter (Estimated): 11 µm @ 1900 nm
- Output Fiber NA: 0.14
- Output Fiber Connector: 2.0 mm Narrow Key FC/APC
