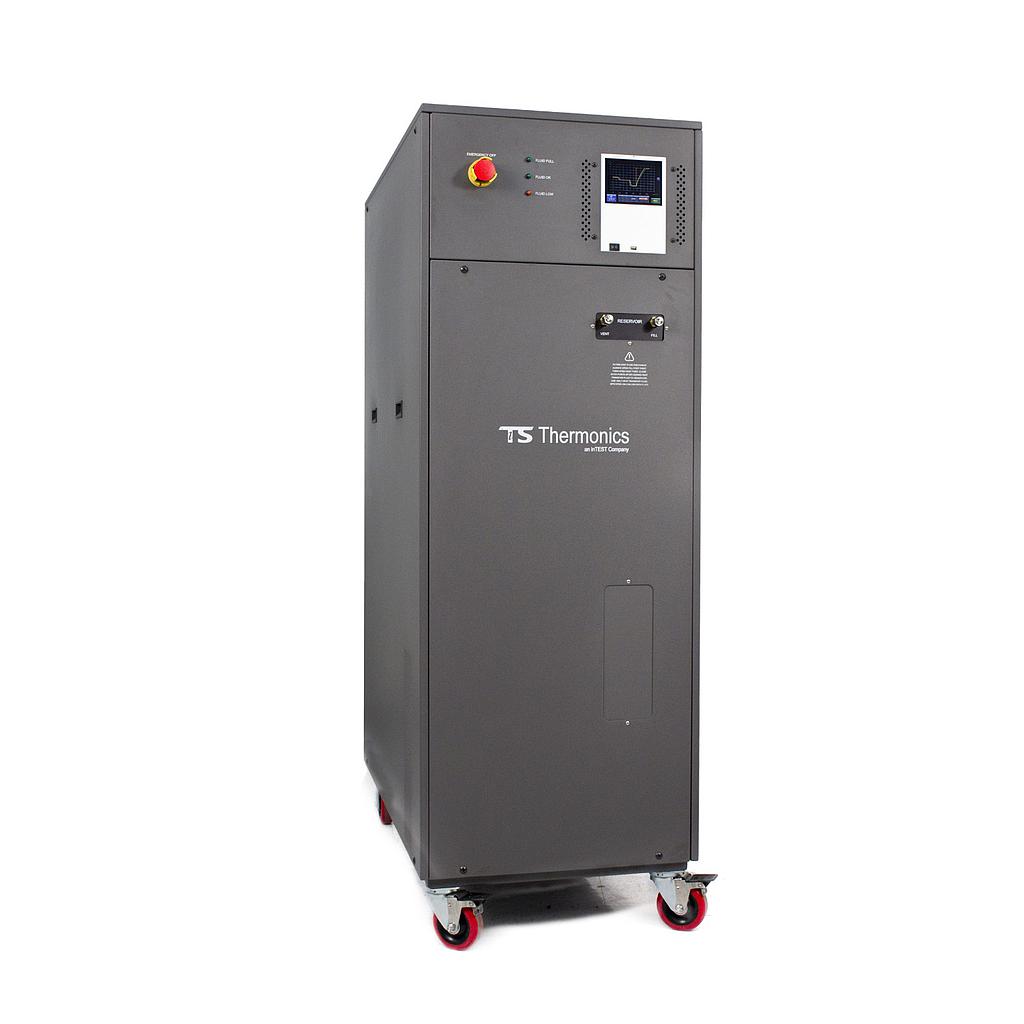

Thermonics A-80-1700 Chillers ຂະບວນການ (1.7kW @ -80°C)
Cooling and heating capacity
Capacity:1.7kW @ -80°C
Condenser: Air-cooled
Process Heater: 1.7kW
Process Fluid Set Point Range: -85 to +50°C
Fluid Stability: ±0.5°C (at rated load)
Pump and process fluid
Pump: Gear
Process Fluid: HFE-7100 or equivalent low temp. fluid
Wetted Materials: Standard materials include copper, nickel, brass, and plastic. Optional: Fully stainless steel
Flow Rate: 4 GPM (15.1 LPM) at 50 PSIG. Optional: Flow monitoring and control
Available Pressure: 50 PSIG (or less), Optional: Pressure monitoring and control
Fluid Connections: 0.75” NPT
Controls and compliance
User Interface: 5.7” color touch-screen with temperature graphing and charting
Temperature Measurement: Range: -210 to +680°C, Resolution: 0.1°C full scale
Remote Communications: Ethernet, Serial-USB, Web server. Optional: RS-232
Alarms: Low Flow, Low Reservoir, Out-of-temp Range. Optional: Drip Tray
Diagnostics: Runtime hours (controller, chiller, compressor, pump), system performance log, valve activation counts, enclosure temperature
Chiller Compliance: CE / RoHS / designed to meet UL1995/UL61010
Operating requirements
Ambient Temperature Range: 10 to 32°C (25°C nominal)
Power Requirement: 3-phase, 208 to 230v, 60Hz
System Dimensions (approx.): 31.0”W X 48.0”D X 78.0" H (78.7 x 121.9x 198.1cm)
