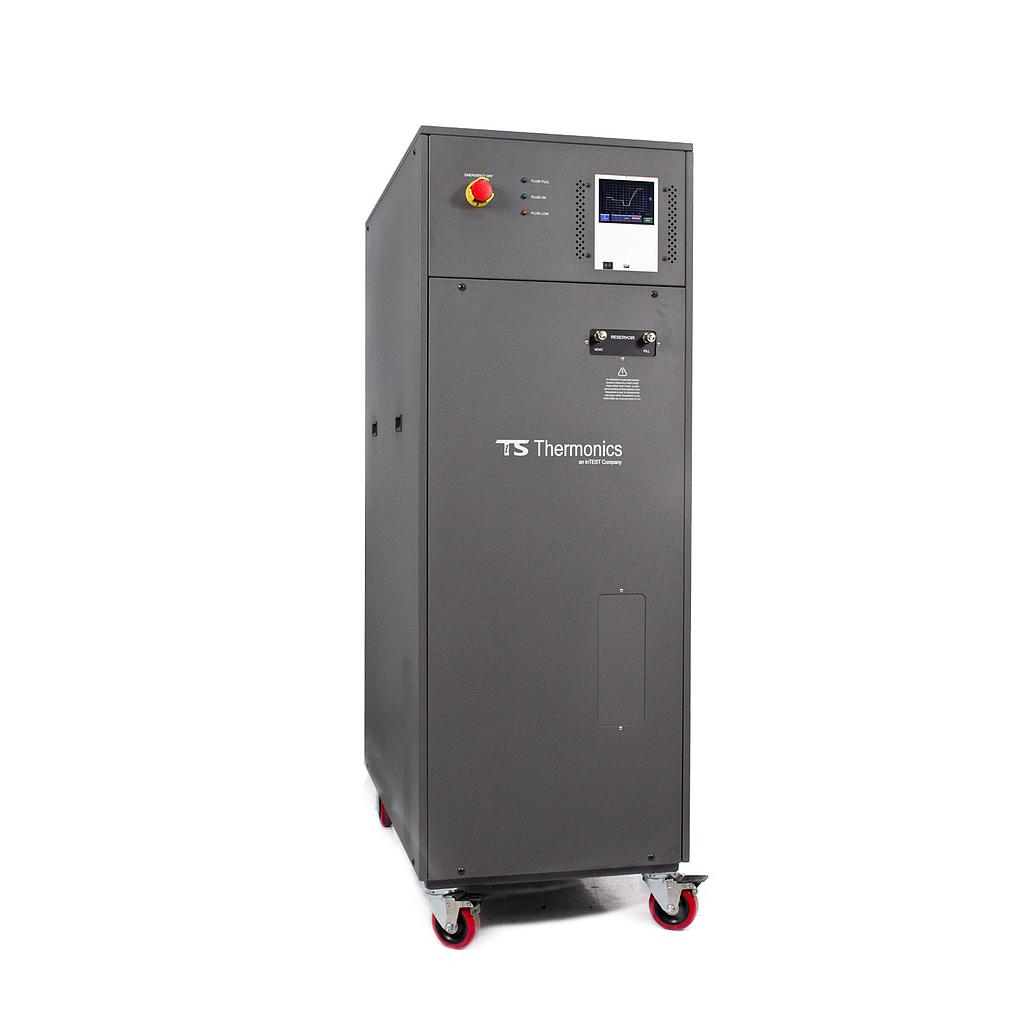

Thermonics A-40-2700 Chillers ຂະບວນການ (2.7kW @ -40°C)
Cooling and heating capacity
Capacity: 2.7kW @ -40°C
Condenser: Air-cooled
Process Heater: 1.7kW
Process Fluid Set Point Range: -40 to +50°C
Fluid Stability: ±0.5°C (at rated load)
Pump and process fluid
Pump: Gear or Turbine
Process Fluid: Compatible with a variety of process fluids. Published specifications using Syltherm XLT.
Wetted Materials: Standard materials include copper, nickel, brass, and plastic. Optional: Fully stainless steel
Flow Rate: 4 GPM (15.1 LPM) at 50 PSIG. Optional: Flow monitoring and control
Available Pressure: 50 PSIG (or less), Optional: Pressure monitoring and control
Fluid Connections: 0.75” NPT
Controls and compliance
User Interface: 5.7” color touch-screen with temperature graphing and charting
Temperature Measurement: Range: -210 to +680°C, Resolution: 0.1°C full scale
Remote Communications: Ethernet, Serial-USB, Web server. Optional: RS-232
Alarms: Low Flow, Low Reservoir, Out-of-temp Range. Optional: Drip Tray
Diagnostics: Runtime hours (controller, chiller, compressor, pump), system performance log, valve activation counts, enclosure temperature
Chiller Compliance: CE / RoHS / designed to meet UL1995/UL61010
Operating requirements
Ambient Temperature Range: 10 to 32°C (25°C nominal)
Power Requirement: 3-phase, 208 to 230v, 60Hz
System Dimensions (approx.): 43.0”W X 60.0”D X 78" H (109.2 X 152.4 X 198.1 cm)
