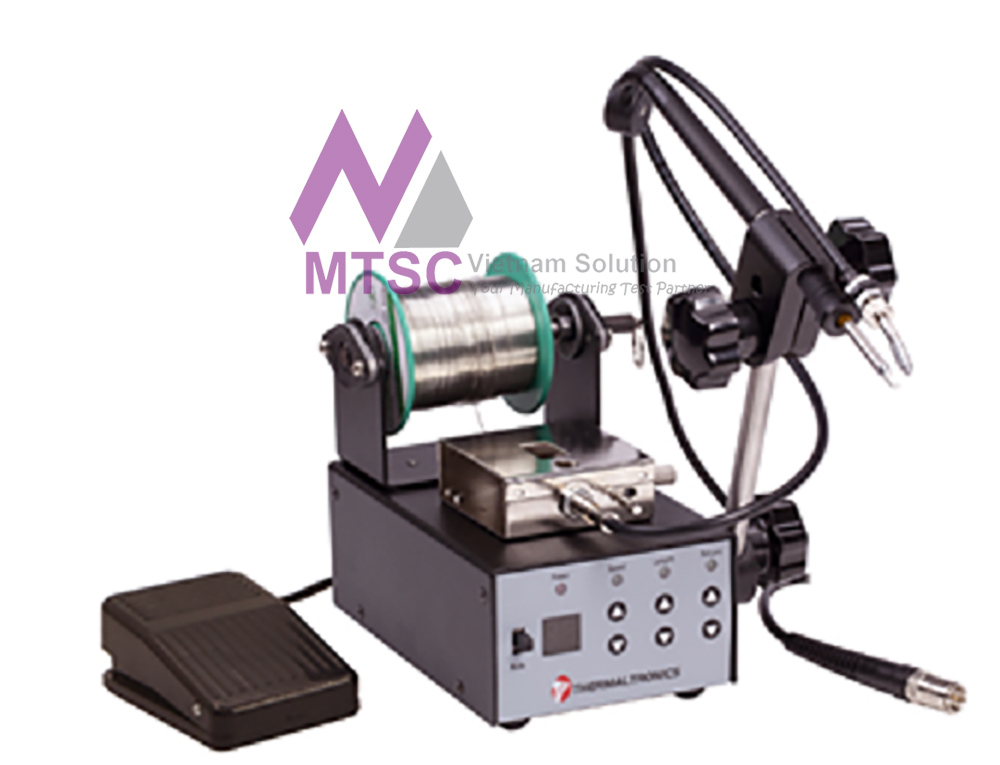

Thermaltronics AF-KIT ຊຸດເຄື່ອງປ້ອນ Auto Solder
AF-KIT SPECIFICATIONS
Input Line Voltage: 100-240 VAC
Output Line Voltage: 18VDC, 2A
Solder Feed Time: 0 - 3 seconds
Solder Feed Speed: 0 - 14mm/sec
Solder Feed Quantity: 0 - 14mm/sec
Solder Return Quantity: 0 - 14mm/sec
Solder Feed Mode: Single / Continuous
Usable Solder Diameter: Φ0.6, Φ0.65, Φ0.8, Φ1.0, Φ1.2, Φ1.6mm
Size (W x H x D): 150mm x 165mm x 130mm
Weight:1.5 KG
Input Line Frequency: 50/60 Hz
1AF-KIT-1 for use on TMT-9000S, AF-KIT-2 for use on TMT-5000S, AF-KIT-3 for use on TMT-2000S
PACKING LIST
TMT-AF100: Auto Solder Feeder
AF-HDL-X2: Handpiece Holder
AF-HPK-X3: Guide Pipe Assembly
AF-NOZ-1: Nozzle Pack
AF-PEDAL-1: Auto Feeder Switch
AF-POWER-1: AC Power Adapter
2AF-HDL-1 for use on TMT-9000S, AF-HDL-2 for use on TMT-5000S, AF-HDL-3 for use on TMT-2000S
3AF-HPK-1 for use on TMT-9000S, AF-HPK-2 for use on TMT-5000S, AF-HPK-3 for use on TMT-2000S
*Soldering Handpiece sold separately in AF-KIT-1,AF-KIT-2, AF-KIT-3. Please see System Configurations in attachment.
