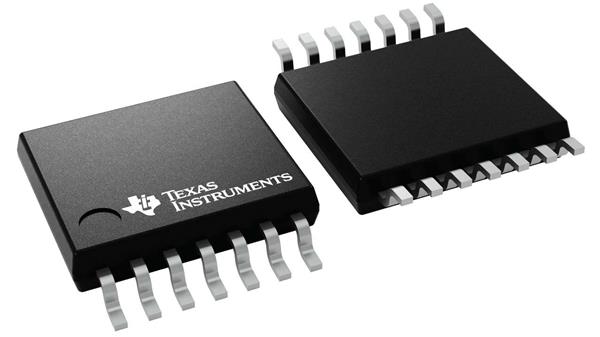

Texas Instruments TLV9144IPWR ເອັັບພລິຟໄອເຟີຣເຊີດປະກອບການດຳເນີນງານ ສີ່ຕົວ, 18V, 125kHz, ຂໍ້ມູນເຂົ້າແລະຂໍ້ມູນອອກຮອບລົດ, ພະລັງງານຕ່ຳ (7.5-uA) ເອັັບພລິຟໄອເຟີຣເຊີດປະກອບການດຳເນີນງານ

Shutdown: No Shutdown

Input Type: Rail to Rail

Technology: Si

Output Type: Rail to Rail

Amplifier Type: Differential

Mounting Style: SMD/SMT

SR - Slew Rate: 100 mV/us

THD plus Noise: 0.07 %

Number of Channels: 4 Channel

Supply Voltage - Max: 18 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 500 fA

Operating Supply Current: 7 uA

Ios - Input Offset Current: 500 fA

Output Current per Channel: 40 mA

Vos - Input Offset Voltage: 265 uV

GBP - Gain Bandwidth Product: 125 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.5 fA/sqrt Hz

en - Input Voltage Noise Density: 50 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 72 dB

PSRR - Power Supply Rejection Ratio: 139 dB
