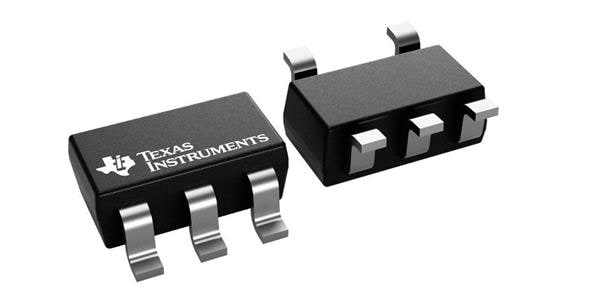

Texas Instruments OPA376AQDBVRQ1G4 ເຄື່ອງຂະຫຍາຍສະຖານະການດຳເນີນງານ ລະບົບລົດຍົນ ຄວາມແຈ້ງແຈງສູງ, ສະຫຼຸບສຽງ, ຄວາມຕ່ຳ Iq ເຄື່ອງຂະຫຍາຍສະຖານະການ

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Amplifier Type: Differential

Mounting Style: SMD/SMT

SR - Slew Rate: 2 V/us

THD plus Noise: 0.00027 %

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.2 V

Ib - Input Bias Current: 200 fA

Operating Supply Current: 760 uA

Ios - Input Offset Current: 200 fA

Output Current per Channel: 30 mA, 50 mA

Vos - Input Offset Voltage: 5 uV

Maximum Dual Supply Voltage: 2.75 V

Minimum Dual Supply Voltage: 1.1 V

GBP - Gain Bandwidth Product: 5.5 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 2 fA/sqrt Hz

en - Input Voltage Noise Density: 7.5 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 76 dB
