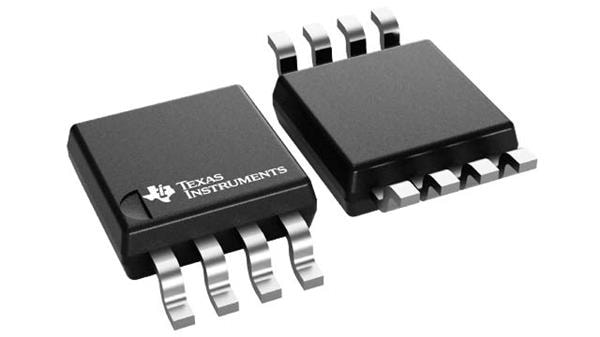

Texas Instruments OPA2994IDGKR ເອັັບພລິຟໄອເຟີຣເຊີດອບພລິຟໄອເຟີຣເຊີດຄູ່ 32V 24MHz RRI O high-output-curren

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Output Type: Rail-to-Rail

Amplifier Type: Operational Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 35 V/us

THD plus Noise: 113 dB

Number of Channels: 2 Channel

Supply Voltage - Max: 32 V

Supply Voltage - Min: 2.7 V

Ib - Input Bias Current: 1.5 uA

Output Current per Channel: 125 mA

Vos - Input Offset Voltage: 350 uV

GBP - Gain Bandwidth Product: 24 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 1 pA/sqrt Hz

en - Input Voltage Noise Density: 12 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 93 dB
