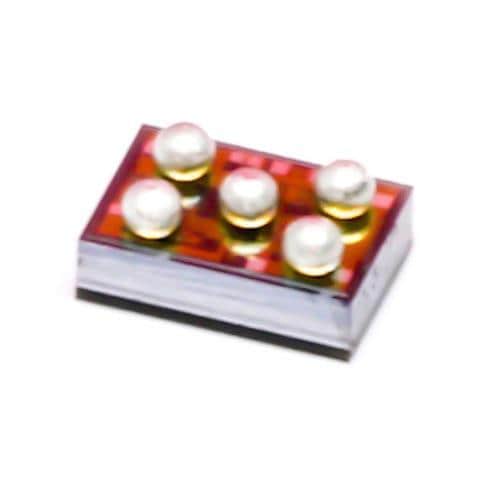

Texas Instruments LP3985ITL-2.8/NOPB ຕົວຄວບຄຸມແຮງດັນຕໍ່ໄຟຟ້າຕ່ຳທີ່ມີກຳລັງກິດຕິດຕໍ່ຕ່ຳ 150-mA low-dropout voltage regulator wi A 926-LP3985ITLX28NOPB

Polarity: Positive

Tolerance: 3 %

Output Type: Fixed

Unit Weight: 1.600 mg

Mounting Style: SMD/SMT

Output Current: 150 mA

Output Voltage: 2.8 V

Dropout Voltage: 60 mV

Line Regulation: 0.1 %

Load Regulation: 0.0004 %

Number of Outputs: 1 Output

Quiescent Current: 250 uA

Input Voltage - Max: 6 V

Input Voltage - Min: 2.5 V

Dropout Voltage - Max: 0.002 V at 1 mA, 0.035 V at 50 mA, 0.07 V at 100 mA, 0.1 V at 150 mA

Pd - Power Dissipation: 244 mW

Ib - Input Bias Current: 155 uA

Operating Supply Current: 85 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 50 dB
