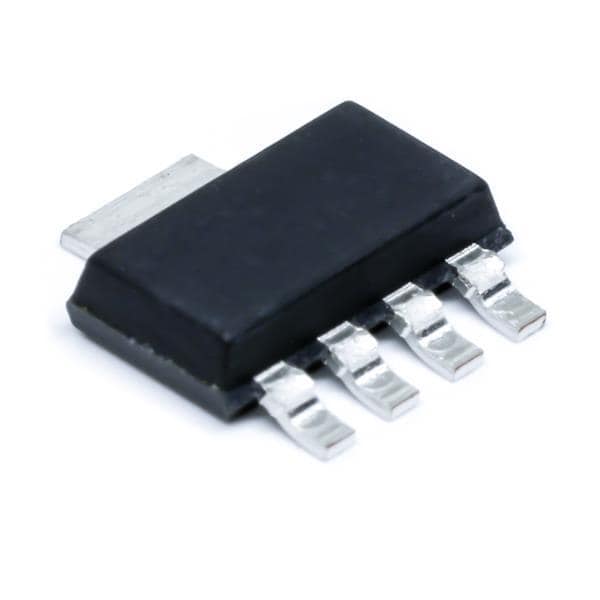

Texas Instruments LP3874EMPX-ADJ/NOPB ໂວລເຕີຕຳສຸດ Ultra Low Dropout Voltage 800-mA 7-V adjusta ble low-dropout volt A 926-LP3874EMPADJNOPB

Polarity: Positive

Output Type: Adjustable

Unit Weight: 121 mg

Mounting Style: SMD/SMT

Output Current: 800 mA

Output Voltage: 1.216 V to 6.76 V

Dropout Voltage: 240 mV

Line Regulation: 0.02 %

Load Regulation: 0.04 %

Number of Outputs: 1 Output

Quiescent Current: 10 nA

Reference Voltage: 1.216 V

Input Voltage - Max: 7 V

Input Voltage - Min: 2.5 V

Dropout Voltage - Max: 0.035 V at 80 mA, 0.3 V at 800 mA

Ib - Input Bias Current: 6 mA

Operating Supply Current: 6 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 73 dB
