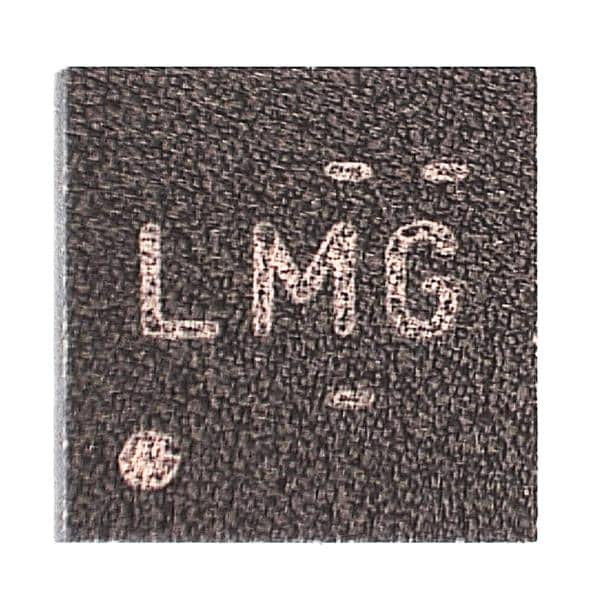

Texas Instruments LMG1025QDEERQ1 Low-Side Automotive 7-A/5-A s ingle-channel low-si A 595-LMG1025QDEETQ1

Shutdown: Shutdown

Fall Time: 850 ps

Rise Time: 650 ps

Logic Type: CMOS, TTL

Technology: GaN

Unit Weight: 7.700 mg

Mounting Style: SMD/SMT

Output Current: 7 A

Development Kit: LMG1020EVM-006, LMG1025-Q1EVM

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.25 V

Input Voltage - Min: 4.75 V

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 4.75 V

Maximum Turn-On Delay Time: 2.6 ns

Maximum Turn-Off Delay Time: 2.9 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
