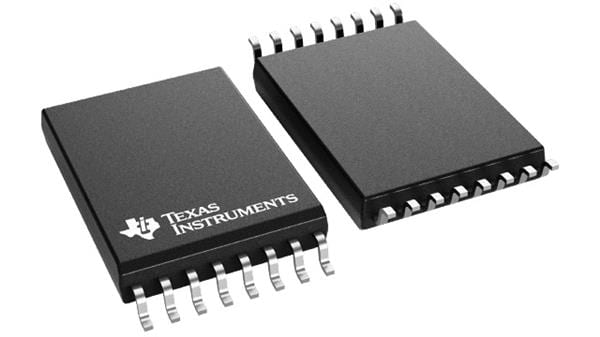

Texas Instruments ISO6742QDWWRQ1 ອຸປະກອນກັນກະທົບດິຈິຕອນສໍາລັບລົດຍົນ, ອຸປະກອນກັນກະທົບດິຈິຕອນສາມາດໃຊ້ງານທົ່ວໄປມີ 4 ຊ່ອງ 2/2

Shutdown: No Shutdown

Data Rate: 50 Mb/s

Pulse Width: 0.2 ns

Isolation Type: Isolated

Mounting Style: SMD/SMT

Development Kit: DIGI-ISO-EVM, ISO6741DWEVM

Forward Channels: 2 Channel

Reverse Channels: 2 Channel

Isolation Voltage: 5000 Vrms

Maximum Fall Time: 2.6 ns

Maximum Rise Time: 2.6 ns

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Protocol Supported: CAN

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.71 V

Pd - Power Dissipation: 137.5 mW

Propagation Delay Time: 11 ns

Pulse Width Distortion: 0.2 ns

Operating Supply Current: 402.2 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
