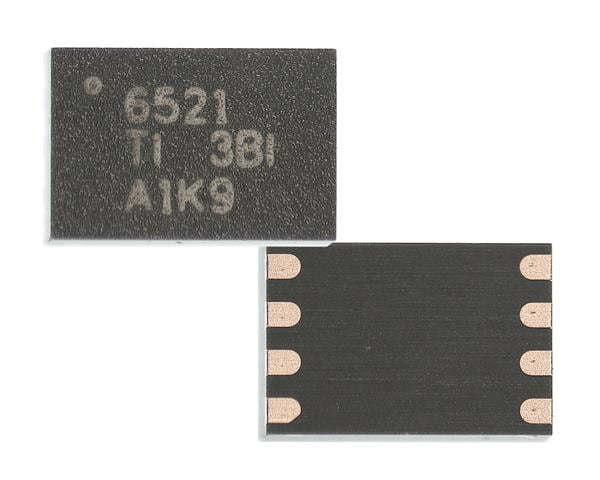

Texas Instruments ISO6521REUR ອຸປະກອນກັບກັນຟັງຊັນສອງຊ່ອງປະສິດທິພາບສູງ

Polarity: Unidirectional

Shutdown: No Shutdown

Data Rate: 50 Mb/s

Pulse Width: 20 ns

Isolation Type: Capacitive Coupling

Mounting Style: SMD/SMT

Forward Channels: 1 Channel

Reverse Channels: 1 Channel

Isolation Voltage: 570 Vrms

Maximum Fall Time: 4.5 ns, 5.3 ns

Maximum Rise Time: 4.5 ns, 5.3 ns

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.71 V

Propagation Delay Time: 18 ns

Pulse Width Distortion: 0.2 ns, 0.5 ns, 0.6 ns, 0.7 ns

Operating Supply Current: 2.3 mA, 3 mA, 3.6 mA, 4.2 mA, 5.2 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
