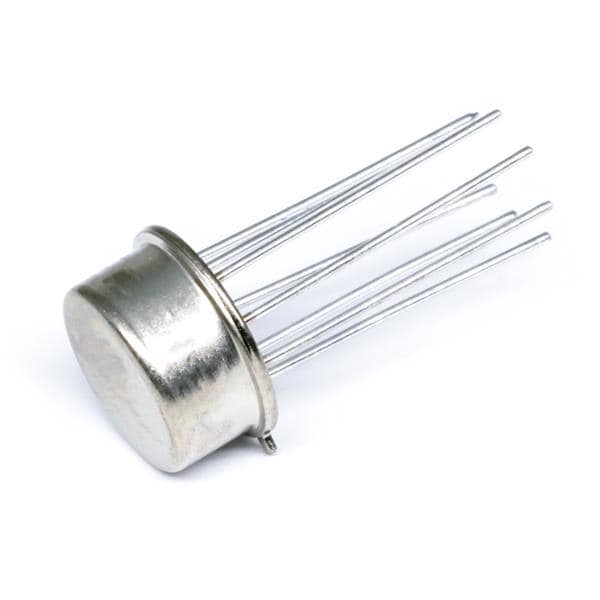

Texas Instruments INA117BM ເພີ່ມສະຫຼຸບຄວາມແຕກຕ່າງ ສູງສະຫຼຸບສະຖານະທົ່ວໄປ

Gain V/V: 1 V/V

Gain Error: 0.02 %

Supply Type: Dual

3 dB Bandwidth: 200 kHz

Amplifier Type: Differential

Mounting Style: Through Hole

SR - Slew Rate: 2.6 V/us

Number of Channels: 1 Channel

Dual Supply Voltage: +/- 15 V

Supply Voltage - Max: 36 V

Supply Voltage - Min: 10 V

Operating Supply Current: 1.5 mA

Operating Supply Voltage: 10 V to 36 V

Input Voltage Range - Max: 200 V

Vcm - Common Mode Voltage: - 200 V

Vos - Input Offset Voltage: 1 mV

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 86 dB
