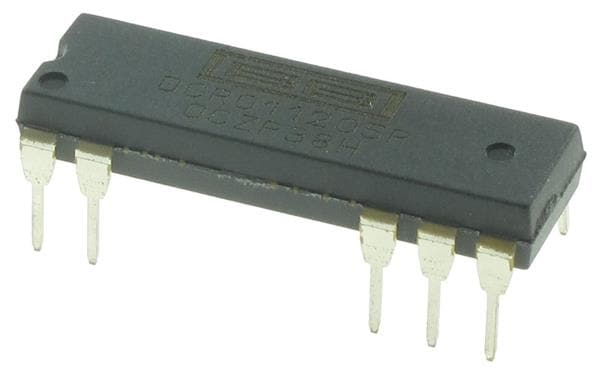

Texas Instruments DCR011205P ອິໂຊເລດ ມິນິ 1W Iso Regs DC/ DC Converter

Width: 7.11 mm (0.28 in)

Height: 5.33 mm (0.21 in)

Length: 23.37 mm (0.92 in)

Industry: Industrial

Unit Weight: 1.354 g

Output Power: 1 W

Input Voltage: 10.8 V to 13.2 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 1 Output

Input Voltage - Max: 13.2 V

Input Voltage - Min: 10.8 V

Input Voltage, Nominal: 12 V

Output Current-Channel 1: 200 mA

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
