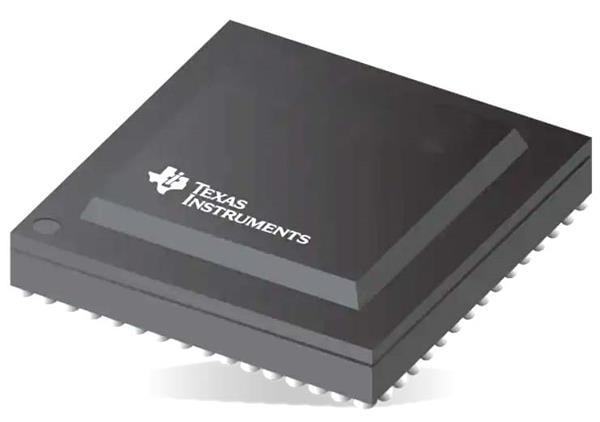

Texas Instruments DAC12DL3200ACF High Speed DAC 12-bit low-latency dual 3.2-GSPS or si

Resolution: 12 bit

Output Type: Current

Architecture: Current Source

Sampling Rate: 3.2 GS/s, 6.4 GS/s

Interface Type: LVDS

Mounting Style: SMD/SMT

Reference Type: External, Internal

Power Consumption: 1.49 W

Moisture Sensitive: Yes

Number of Channels: 1 Channel, 2 Channel

Analog Supply Voltage: - 1.8 V, 1 V, 1.8 V

Digital Supply Voltage: 1.8 V

Pd - Power Dissipation: 2.27 W

INL - Integral Nonlinearity: 0.9 LSB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.6 LSB

SFDR - Spurious Free Dynamic Range: 52 dBc, 54 dBc, 55 dBc, 59 dBc, 63 dBc, 66 dBc, 67 dBc
