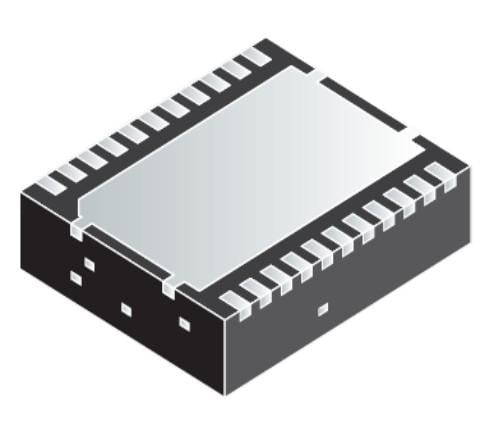

Texas Instruments CSD88584Q5DCT MOSFETs 40-V N channel sync hronous buck NexFET A 595-CSD88584Q5DC

Fall Time: 17 ns

Rise Time: 24 ns

Technology: Si

Unit Weight: 100.600 mg

Channel Mode: Enhancement

REACH - SVHC: Details

Configuration: Dual

Mounting Style: SMD/SMT

Transistor Type: 2 N-Channel

Qg - Gate Charge: 137 nC

Number of Channels: 2 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 12 W

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Typical Turn-On Delay Time: 11 ns

Typical Turn-Off Delay Time: 53 ns

Id - Continuous Drain Current: 50 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 149 S

Rds On - Drain-Source Resistance: 680 uOhms

Vds - Drain-Source Breakdown Voltage: 40 V

Vgs th - Gate-Source Threshold Voltage: 1.2 V
