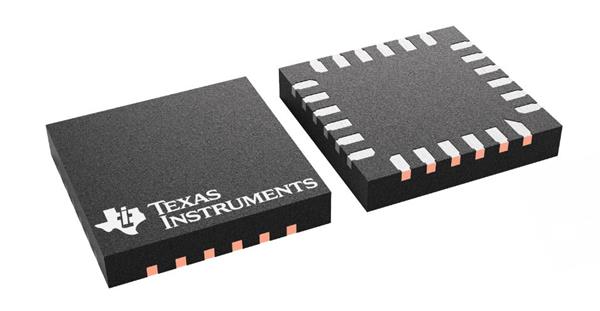

Texas Instruments AFE88201RRUT Integrated Precision DACs Single-channel 16-bit voltage analog fro

Shutdown: No Shutdown

Gain Error: 0.05 %FSR, 0.13 %FSR

Resolution: 16 bit

Output Type: Voltage

Architecture: String

Sampling Rate: 3.84 kS/s

Settling Time: 30 us, 65 us

Interface Type: SPI, UART

Mounting Style: SMD/SMT

Reference Type: Internal

Reference Voltage: 1.25 V

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.71 V

Analog Supply Voltage: 2.7 V to 5.5 V

Digital Supply Voltage: 1.71 V to 1.89 V

Operating Supply Current: 170 uA

INL - Integral Nonlinearity: 1 LSB, 12 LSB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C

DNL - Differential Nonlinearity: 1 LSB, 4 LSB
