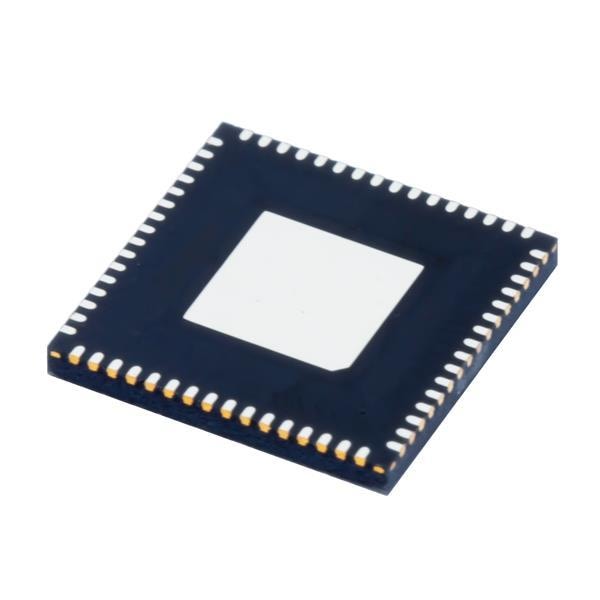

Texas Instruments ADS8528SRGCR ADCs - ຕົວແປສັນຍາລັກຈາກອນາລອກເປັນດິຈິຕອລ 12B 8Ch Bipolar Input ADC A 595-ADS8528SRGCT

Features: Daisy-Chainable, Oscillator

Input Type: Single-Ended

Resolution: 12 bit

Output Type: CMOS

Unit Weight: 227.400 mg

Architecture: SAR

Sampling Rate: 650 kS/s

Interface Type: Parallel, SPI

Mounting Style: SMD/SMT

Reference Type: External, Internal

Power Consumption: 335 mW

Reference Voltage: 2.5 V, 3 V

Moisture Sensitive: Yes

Number of Channels: 8 Channel

Number of Converters: 8 Converter

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Analog Supply Voltage: 4.5 V to 5.5 V

Digital Supply Voltage: 2.7 V to 5.5 V

Pd - Power Dissipation: 430.1 mW

Operating Supply Voltage: 4.5 V to 5.5 V

SNR - Signal to Noise Ratio: 73.9 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

SINAD - Signal to Noise and Distortion Ratio: 73.8 dB
