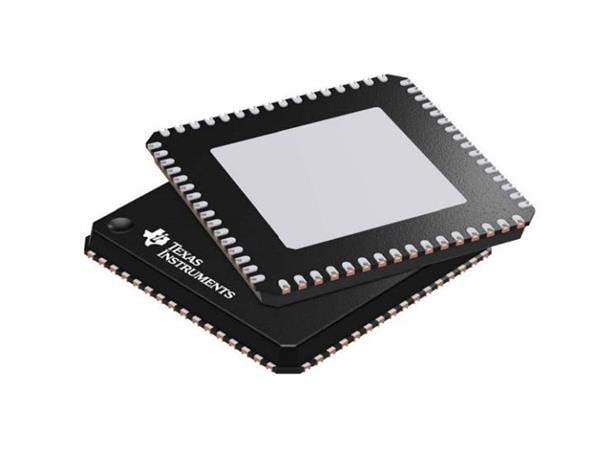

Texas Instruments ADC34RF55IRTD ຕົວແປຂໍ້ມູນຕົວຢ່າງ RF ບໍ່ມີການສະເລ່ຍຊ່ອງ ສີ່ຊ່ອງ 14-ບິດ 3-GSPS ສະຫຼຸບເສຍຫນ້ອຍ

Shutdown: No Shutdown

Gain Error: 3 %FSR

Input Type: Differential

Resolution: 14 bit

Architecture: Other

Sampling Rate: 3 GS/s

Interface Type: Serial

Mounting Style: SMD/SMT

Power Consumption: 6.9 W

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Number of Converters: 4 Converter

Supply Voltage - Max: 1.85 V

Supply Voltage - Min: 1.175 V

Analog Supply Voltage: 1.2 V, 1.8 V

Digital Supply Voltage: 1.2 V

FPBW - Full Power Bandwidth: 2.75 GHz

INL - Integral Nonlinearity: +/- 3.5 LSB

SNR - Signal to Noise Ratio: 61.2 dBFS, 62.1 dBFS, 66.5 dBFS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: +/- 0.85 LSB

ENOB - Effective Number of Bits: 9.7 bit, 9.8 bit, 9.9 bit, 10 bit

THD - Total Harmonic Distortion: 64 dBc

SINAD - Signal to Noise and Distortion Ratio: 58.6 dBFS, 60.3 dBFS
