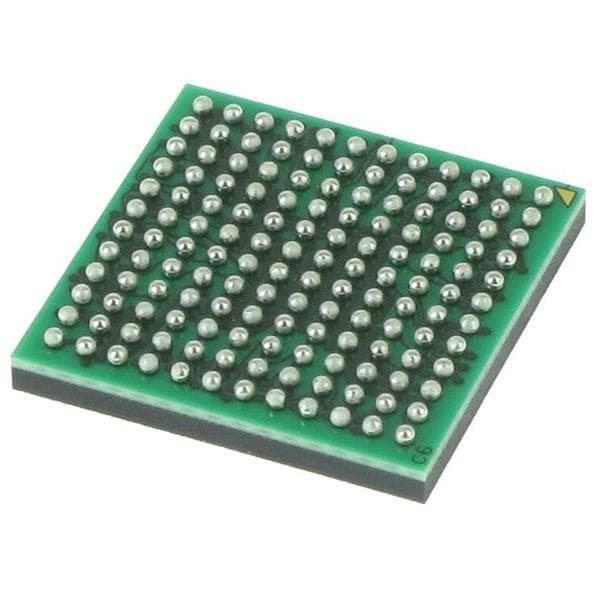

Texas Instruments ADC12QJ1600AAV ຕົວແປສັນຍາລັກເປັນດິຈິຕອນ ສີ່ຊ່ອງ 12-ບິດ 1.6-GSPS ADC ດ້ວຍ ADC12QJ1600AAVT

Shutdown: No Shutdown

Input Type: Differential

Resolution: 12 bit

Output Type: Differential

Architecture: SAR

Sampling Rate: 1.6 GS/s

Interface Type: Serial

Mounting Style: SMD/SMT

Reference Type: External, Internal

Development Kit: ADC12QJ1600EVM, TSW12QJ1600EVM

Power Consumption: 1.91 W

Moisture Sensitive: Yes

Number of Channels: 4 Channel

Number of Converters: 4 Converter

Analog Supply Voltage: 1.8 V to 2 V

Digital Supply Voltage: 1.05 V to 1.15 V

FPBW - Full Power Bandwidth: 6 GHz

INL - Integral Nonlinearity: 1.9 LSB

SNR - Signal to Noise Ratio: 57.4 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.2 LSB

ENOB - Effective Number of Bits: 9 bits

SFDR - Spurious Free Dynamic Range: 64 dB

SINAD - Signal to Noise and Distortion Ratio: 57.5 dB
