Mechanical Specifications
Dimensions
+ Inside : 805(W) x 764.5(D) x 645(H) mm
+ Outside : 941(W) x 943(D) x 855.5(H) mm
+ Door : 624(W) x 624(H) mm
Weight
Approx. 75 kg
Packing
Size : 1100(W) x 1100(D) x 1020(H) mm
Weight : Approx. 90 kg
- The size and weight of the package may vary depending on the packing method.
◈ Typical RF Shielding
Frequency / Shielding effectivness (dB)
18 GHz to 67 GHz : > 60 dB
- It is measured with Blank panels. Shielding performance may vary different depending on I/O interface.
◈ Absorber Reflectivity
Frequency / Reflectivity (dB)
18 GHz to 67 GHz : > 20 dB
- Being measured based on the metal plate (0 dB @ 18 GHz to 67 GHz), and measures the value that is reduced when the radio wave absorber is inserted.
Datasheet
◈ Features

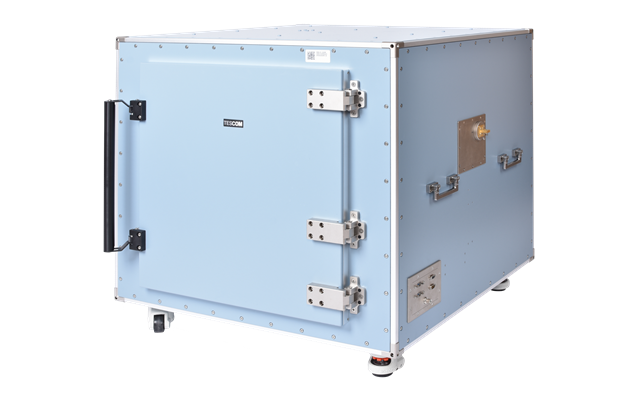

Small chamber specifically designed for the OTA test of a DUT antenna within the millimeter wave band
Provides the OTA test environment by applying an optimized absorber for the millimeter wave band
Operating frequency range: 18 ~ 67 GHz
Shielding performance: > 60 dB
Easy-to-move wheels attached

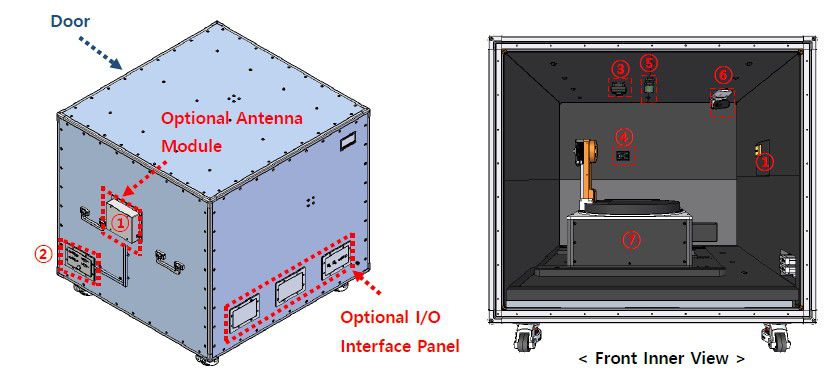

◈ System Components
