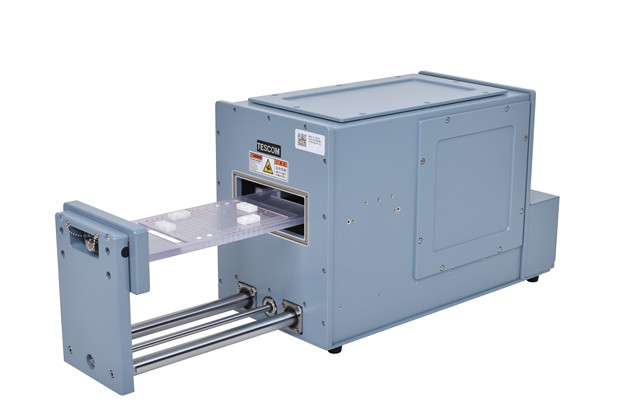

Manufacturer: Tescom
Model: TC-5531AP
Origin: Korea
Warranty: 12 months
◈ Mechanical Specifications
Basic RF connector: one(1), 2.92mm(f) outside and 2.92mm (f) inside
Basic Data connector: USB 2.0
Remote control: RS-232C, Dual Remote Switch
Air connection
+ Main connector : 6 mm OD hose, one-touch fitting
+ Input air pressure : 5 to 10 bar
Dimension
+ Inside : 206(W) x 436(D) x 231(H) mm
+ Outside : 290(W) x 683(D) x 390(H) mm

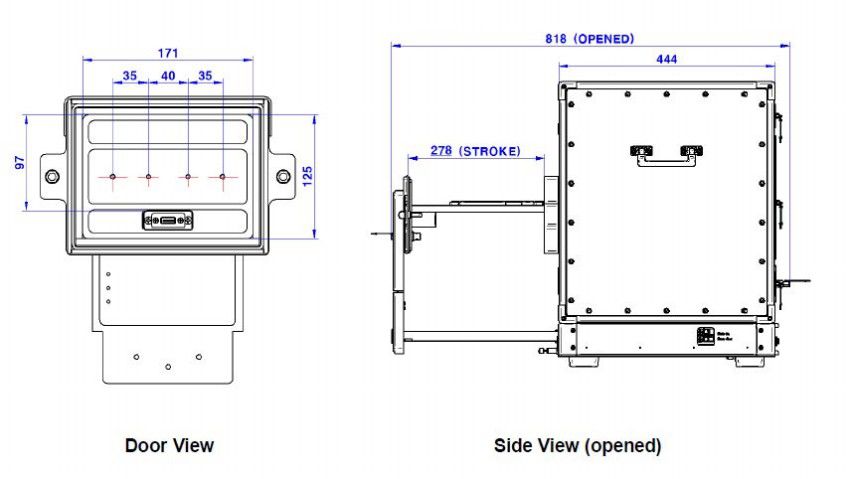

+ Door Size :176(W) x 70(H) mm
+ Door Stroke(Open/Close) : 318mm
Weight: Approx. 32 kg
Packing
+ Size : 820(W) x 560(D) x 480(H) mm
+ Weight : approx. 39 kg
- The size or weight of a package may vary on how to pack a package.
◈ Typical RF Shielding
The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectivness (dB):
18 GHz to 67 GHz : > 60 dB
◈ Absorber Reflectivity
Being measured based on the metal plate (0 dB @ 18 GHz to 67 GHz), and measures the value that is reduced when the radio wave absorber is inserted.
Frequency / Reflectivity (dB) asdasd:
18 GHz to 67 GHz : <-20 dB (Typ.)
Datasheet
◈ Key Features
Specifically designed for Millimeter wave test
Reliable High RF Shielding from 18 GHz to 67 GHz
Pneumatic control of lid open-close
EMI filters on all Data ports
Customizable Data connections
RS-232C Remote Control

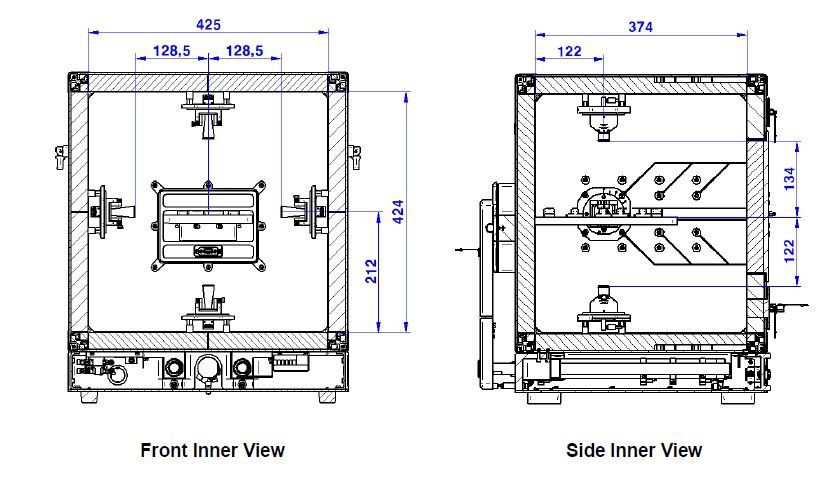

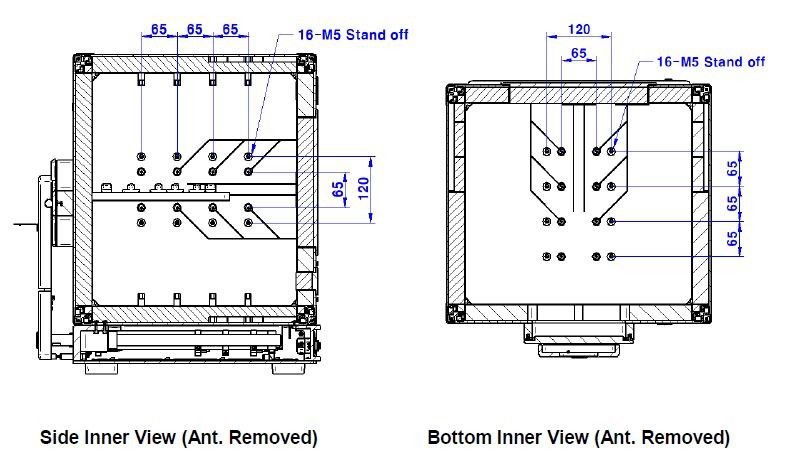

◈ Dimensions
TC-5531AP Outer Dimension : 290 (W) x 683(D) x 390(H) mm
TC-5531AP Inner Dimension : 206(W) x 436(D) x 231(H) mm
