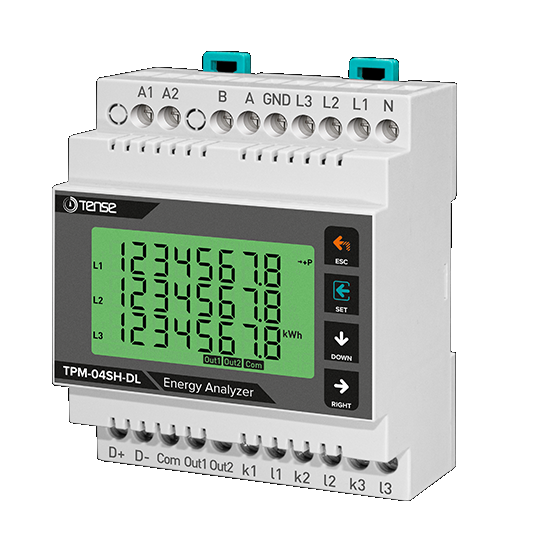

TENSE TPM-04SH-DL ເຄື່ອງວິເຄາະພະລັງງານ (5V-500 VAC)
-Voltage and Current Harmonics Up To 31st Harmonics
-Voltage (V1,V2,V3,V12,V23,V31), current (I1,I2,I3), frequency (F1,F2,F3)
-It displays powers of each phase: Active Power (P1, P2, P3); Apparent Power (S1, S2, S3); Reactive Power (Q1, Q2, Q3, Q)
-It displays powers of each phase: Power Factor (PF1, PF2, PF3); 3 x Cos ϕ(Cosφ1,Cosφ2,Cosφ3)
-Energy measurement (ΣkWh, ΣkVArh )
-Min, max and average values of current, voltage and power
-71.5×61.5 Glass LCD Display
-Store voltage, current, and capacity values over a period of time
-Event logs (high voltage, low voltage, power failure, voltage imbalance, high current, current irregularity, THDV and THDI limits)
-The menu is password protected
-The menu is password protected
-RS485 Modbus RTU (1200 - 38400 bpĐ)
-Date and time can be set
-Error: 0.5% (U, I), 1% (kVA), 2% (kVAr)
-Voltage: V1,V2,V3,V12,V23,V31; 5V-500 VAC or 5V-600kV (by PT)
-Curent: I1,I2,I3; 1mA -5,5A AC or 1mA - 50.000A (by CT)
