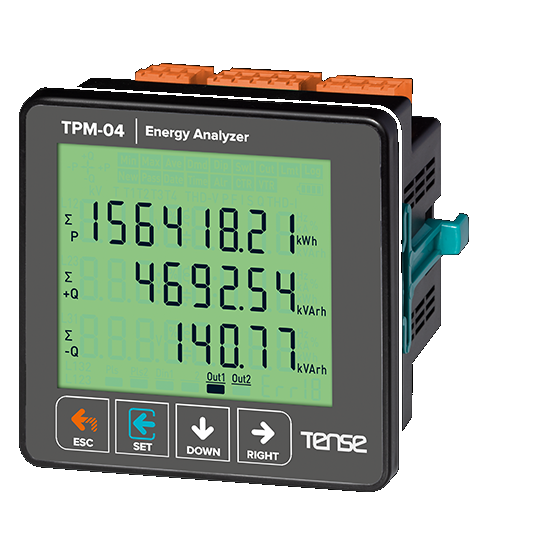

TENSE TPM-04 ເຄື່ອງວິເຄາະພະລັງງານ (5V-500 VAC)
- It Shows Voltage and Current Harmonics Up To 31st Harmonics
- Voltage (V1,V2,V3,V12,V23,V31), current (I1,I2,I3), frequency (F1,F2,F3)
- It displays powers of each phase: Active Power (P1, P2, P3); Apparent Power (S1, S2, S3); Reactive Power (Q1, Q2, Q3, Q)
- It displays powers of each phase: Power Factor (PF1, PF2, PF3); 3 x Cos ϕ(Cosφ1,Cosφ2,Cosφ3)
- Energy measurement (ΣkWh, ΣkVArh )
- Min, max and average values of current, voltage and power
- 71.5×61.5 Glass LCD Display
- Store voltage, current, and capacity values over a period of time
- Event logs (high voltage, low voltage, power failure, voltage imbalance, high current, current irregularity, THDV and THDI limits)
- The menu is password protected
- 2x Relay outputs (adjustable), 1x Digital Input
- RS485 Modbus RTU
- Date and time can be set
- Error: 0.2% (U, I), 0,5% (kVA), 1% (kVAr)
- Voltage Inputs: 5V -330V AC; Voltage Meas. Range: 5V - 330kV
- Current Input: 10mA - 5.5A; Current Meas. Range: 10mA - 5.500A
