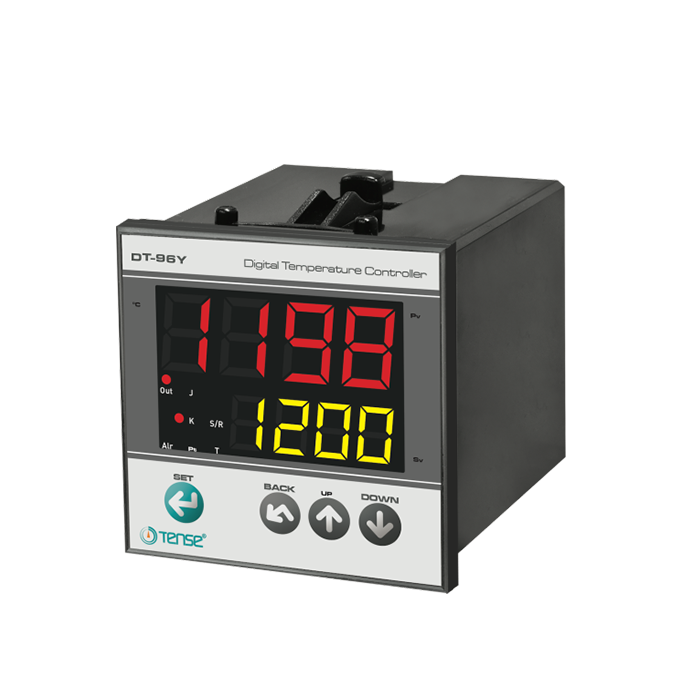

Dimensions: 96x96
Panel Cut-out: 91x91
Display: 4 Digits 7 Segment (PV), 4 digits 7 Segment (SV)
Sensor Type: J,K,T,S,R type T/C, Pt100 selectable
Measuring Scale: -100..600°C, J type T/C (Inpt=J), -100.0 .. 600.0°C J type T/C (Inpt=J.0)
-100..1300°C, K type T/C (Inpt=k), -100.0..999.9°C, K type T/C, (Inpt=k.0)
-100..400°C, T type T/C (Inpt=t), -100.0 .. 400.0°C, T type T/C (Inpt=t.0)
0..1750°C, S type T/C (Inpt=S) 0 .. 1750°C, R type T/C (Inpt=r)
-100..600°C, Pt100, (Inpt=Pt) -100.0 .. 600.0°C, Pt100, (Inpt=Pt.0)
Resolution: ± 1°C or ± 0.1°C
Accuracy: ± 1 % (Over full scale)
Control Form: ON-OFF or P, PI, PD, PID - selectable
Out Output: Relay (NO + NC), 250VAC, 2A, Resistive load, (optional SSR)
Alarm Output: Relay (NO + NC), 250VAC, 2A, Resistive load, (only NO for DT-48Y)
Heat SET: Lower Limit .. Upper Limit °C (H.Set)
Alarm SET: AL.tY = Abs,-Abs; Lo.L .. UP.L oC (A.Set)
AL.tY = rel, -rel, bnd, -bnd, bn.i, -bn.i; -100 .. +100 / -100.0 .. +100.0°C
Heat Hysteresis: 0 .. 50 / 0.0 .. 50.0°C (H.Hys); PID is active if set to 0
Alarm Hysteresis: 1 .. 50 / 0.1 .. 50.0°C (A.Hys)
Proportional Band: 5 .. 150°C (Pb.C)
Integral Time: 0:00 .. 30:00 min:sec. (OFF if set to 0:00)
Derivative Time: 0:00 .. 10:00 min:sec. (OFF if set to 0:00)
Control Period: 1 .. 200 sec. (Ct)
Offset: -100..+100 oC / -100.0 .. +100.0°C (oFFS)
Heating/Cooling: Selectable (only ON-OFF control form is active for cooling)
Supply Voltage: 100..240VAC, 50-60Hz or (24VDC/AC; isolation voltage: 40VAC max.)
Power Consumption: < 8VA
Humidity: < 70% (non-condensing)
EMC: EN 61000-6-1, EN 61000-6-3 (Only light industrial environment)
Safety: EN 61010-1; Pollution degree 1, measurement category I, (Only light industrial environment, double/reinforced isolated, non-conductive pollution environment)
Protection Class: IP20; according to EN 60529
Temperature Spec.: Operating: 0 .. 50°C, Storage -10°C .. 60°C (no icing)
Weight: < 0.5 kg
Torque for screwing: Max. 0.5 N.m
