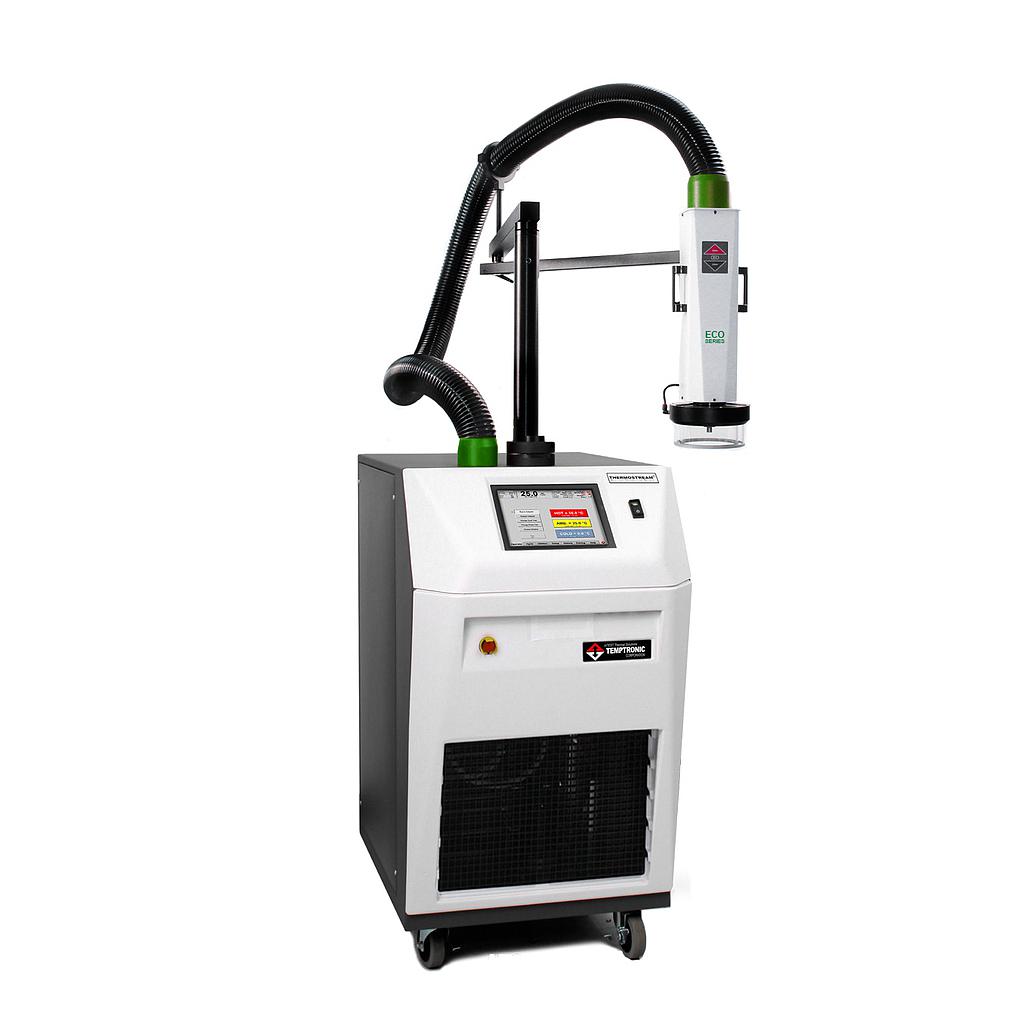

Temptronic ECO-710-M Thermostream® ດ້ວຍເທັກໂນໂລຍີງຽບ WhisperStream (-80~+225°C, 4~18scfm)
Description
The ECO Series is designed for any environment where audible noise and heat dissipation are concerns. It operates on an energy-efficient, 20 amp, 50/60Hz circuit with proprietary technology delivering quiet, smooth sounding operation. Additionally, the system does not require annual leak testing because its gas charge is below the CO2 equivalent limit for greenhouse gas emissions as specified by Regulation EU 517/2014.
These fast, precise temperature forcing systems provide effective testing and conditioning of electronic components, boards and modules. .
Performance
Temperature Range: -80 to +225°C (50/60Hz) No LN2 or LCO2 Required
Transition Rates
Heating: -55 to +125°C, <10s
Cooling: +125 to -55°C, <10s
System Airflow Output: 4 to 18scfm (1.9 to 8.5 l/s) Continuous
Temperature control
Temperature Display & Resolution: +/- 0.1°C
Temperature Accuracy: 1.0°C (when calibrated against NIST standard)
DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled
DUT Sensor Ports: Internal diode, thermocouples (T & K),RTD (100 Ohm platinum)
Power: 200 - 250 VAC (230V nominal), 50/60Hz 30 amp, 1phase
Compressed air
Clean, Dry Air (CDA): Filtered to 5 micron particulate contamination.
Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.
Dewpoint: <10°C @ 6.2 BAR (90PSI)
Air Supply Pressure: 6.2 to 7.6 BAR (90 to 110 PSIG)
Total Air Flow Rate Required: 7.1 to 14.2 l/s (15-30 scfm), 11.8 l/s (25 scfm) nomina
Air Supply Temperature: +20° to +25°C; +22°C nominal
Operating environment
Operating Temperature: +20°C ~ +28°C; +23°C nominal
Humidity: 0 ~ 60%; 45% nominal
Noise Level: <56dBA
