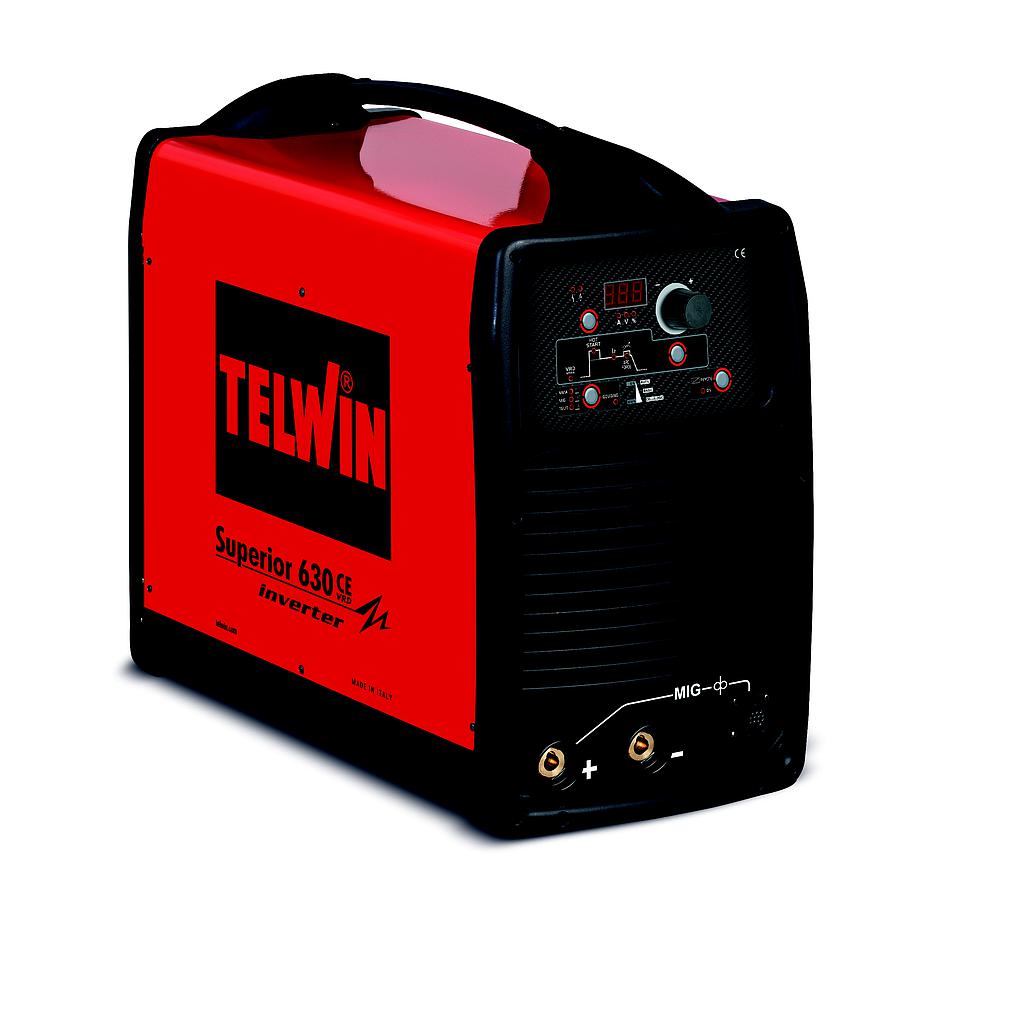

Telwin SUPERIOR 630 CE VRD MMA INVERTER (1,6 - 8 mm)
ຜູ້ຜະລິດ: Telwin Model: SUPERIOR 630 CE VRD P/N: 816032 ທີ່ມາ: Italy - ຕິດຕໍ່ພົວພັນ
MAX NO LOAD VOLTAGE: 65 / 73 V
EFFICIENCY: 86 V
THREE PHASE MAINS VOLTAGE: 230 /400 V
MAX ABSORBED CURRENT: 44 / 35 A
POWER FACTOR (cosphi): 0,9
MAINS FREQUENCY: 50 / 60 Hz
ABSORBED CURRENT AT 60% - MAX 25 / 20 A
D. USABLE ELECTRODES IN DC: 1,6 - 8 mm
CURRENT RANGE: 10 - 450 / 10 - 600 A
MAX ABSORBED POWER: 16 / 23 kW
PROTECTION DEGREE: IP23
MAX CURRENT DC (EN 60974-1): 400 @ 35% / 500 @ 40 % A
ABSORBED POWER AT 60% 10 / 13 kW
DIMENSIONS: 67 x 31 x 56 cm
DC CURRENT: 300 / 400 A
MOTORGENERATOR MINIMUM POWER: 22 / 32 kW
WEIGHT: 43 kg
