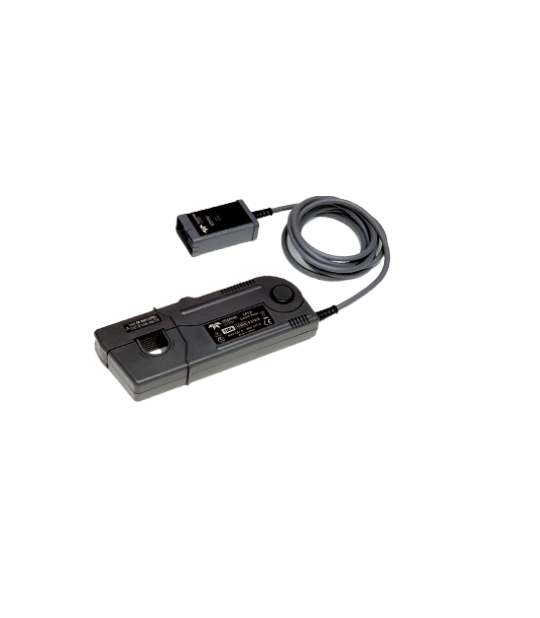

Teledyne Lecroy CP150B ຕວງກວດກະວີໄຟຟ້າ (150 A, 10 MHz)
Bandwidth (Probe Only): 10 MHz
Coupling: AC 1 MΩ, DC 1MΩ, GND
Risetime (typical): 35 ns
Max Continuous Input Current: 150 A
Max Peak Current (non-continous): 300 A
Minimum Sensitivity: 100 mA/div
Amplitude Accuracy:
±1.0 % of reading ±100 mA to 150A
±2.0% of reading to 300A
Maximum Circuit Voltage:
600 V CAT II
300 V CAT III (insulated conductor)
Environmental and Safety
Operating Temperature: 0 °C to 40 °C
Humidity: ≤ 80 % relative humidity (non-condensing)
Storage Temperature: -10 °C to 50 °C
Max Altitude: 2000 m
Physical Dimensions
Probe Head Dimensions (L x W x H): 175 mm x 27 mm x 69 mm
Cable Length: 2 m
Maximum Conductor Size: 20 mm
Weight: 500 g
General Characteristics
Interface: ProBus
