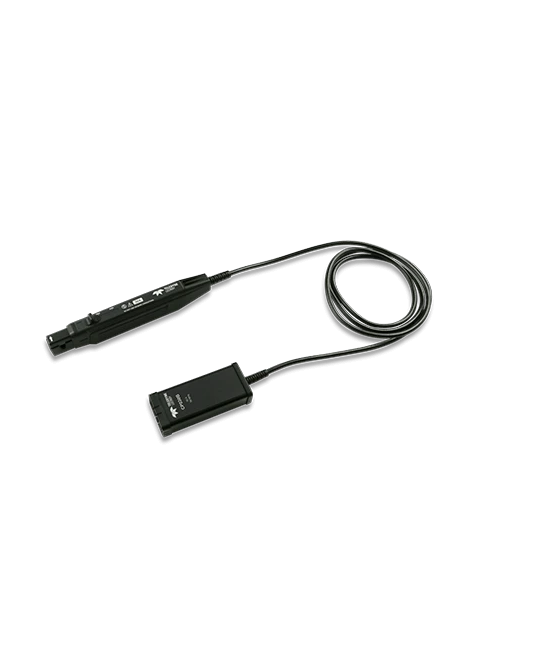

Bandwidth (Probe Only): 50 MHz
Coupling: AC 1 MΩ, DC 1MΩ, GND
Risetime (typical): 7 ns
Max Continuous Input Current: 30 A
Max Peak Current (non-continous): 50 A
Minimum Sensitivity: 1 mA/div
Amplitude Accuracy:
±1% of reading to 30 A
±2% of reading to 50 A
Maximum Circuit Voltage: 300 V, CAT I (Insulated Wire)
Environmental and Safety
Operating Temperature: 0 °C to 40 °C
Humidity: ≤ 80 % relative humidity (non-condensing)
Storage Temperature: -10 °C to 50 °C
Max Altitude: 2000 m
Physical Dimensions
Probe Head Dimensions (L x W x H): 175 mm x 18 mm x 40 mm
Cable Length: 1.5 m
Maximum Conductor Size: 5 mm
Weight: 260 g
General Characteristics
Interface: ProBus
