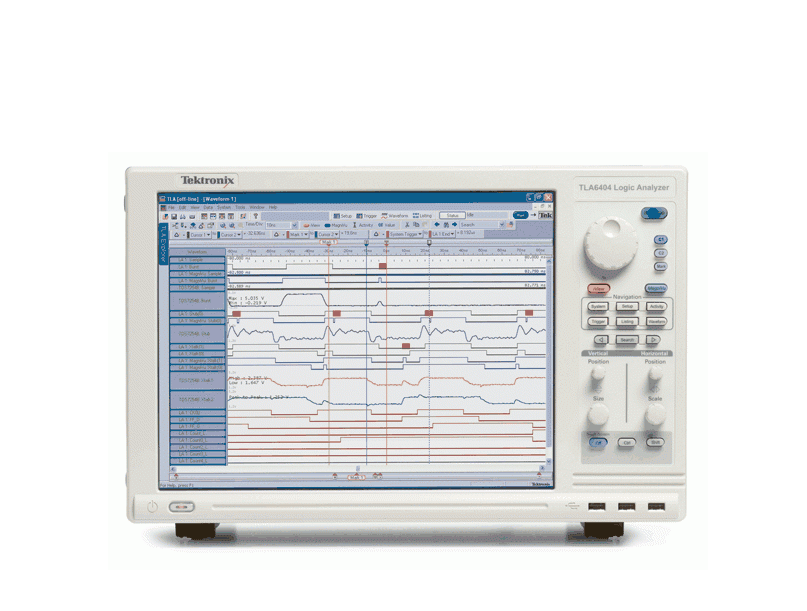

TEKTRONIX TLA6402 ການວິເຄາະເຫດຜົນ
Channels : 68
High-speed timing 25 GHz (40 ps) with 128 Kb record length
Maximum timing sample rate (Half/
Full channel)
3.2 GHz / 1.6 GHz
Maximum State clock rate 333 MHz (standard)
667 MHz (with Option 1T)
Maximum State data rate 667 Mb/s (standard)
1333 Mb/s (with Option 1T)
Maximum record length 2 Mb (standard)
4 Mb (Option 1S)
8 Mb (Option 2S)
16 Mb (Option 3S)
32 Mb (Option 4S)
64 Mb (Option 5S)
Analog Mux 4 fixed channels (standard)
Any signal (user selectable) may be routed to 4 output BNCs with Option AM
Probing options (order separately) P5910 - 17-channel General-purpose probe
P5934 - 34-channel Mictor probe
P5960 - 34-channel D-MAX probe
PC characteristics
Operating system Microsoft® Windows® 7 Ultimate, 64-bit
Processor Intel® Core i3-2120, 3.3 GHz, 3M Cache
Chipset Intel® Q67 chipset
Memory 2 × 2 GB DIMM, 4 GB Total
DDR3, 1066 MHZ, PC3-8500
Sound Line In, Line Out, and Mic In connectors
3.5 in., ≥500 GB Serial ATA, 7200 RPM
Optical drive Internal 4.7 GB DVD±R/RW
External display port type One (1) DVI connector and one (1) VGA connector
External display resolution Up to 1920 × 1200 noninterlaced at 32-bit color, each for both primary and secondary displays
Network port Two (2) 10/100/1000 LAN with RJ-45 connector
USB port Five (5) USB 2.0 ports and two (2) USB 3.0 ports. USB ports can be disabled in BIOS.
