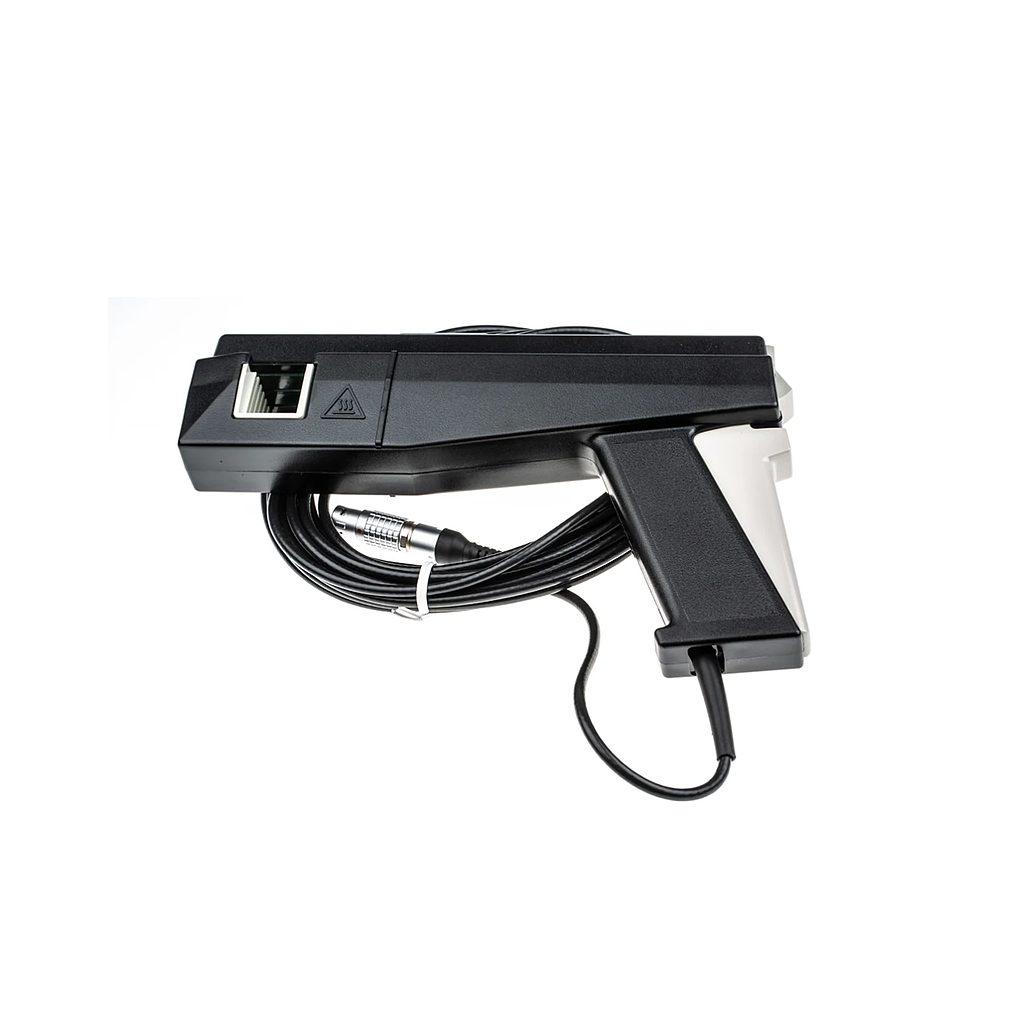

TEKTRONIX TCP404XL ລະບົບການວັດແທກກະແສໄຟຟ້າ AC/DC (500ADC, 2Mhz)

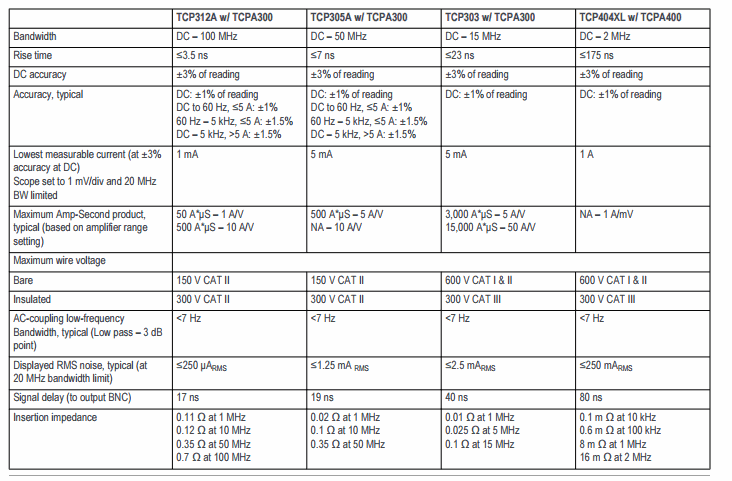

Bandwidth DC – 2 MHz

Rise time ≤175 ns
DC accuracy ±3% of reading
Accuracy, typical DC: ±1% of reading
DC to 60 Hz, ≤5 A: ±1%
60 Hz – 5 kHz, ≤5 A: ±1.5%
DC – 5 kHz, >5 A: ±1.5%
Lowest measurable current: 1A
Maximum wire voltage
Bare 600 V CAT II ;Insulated 300 V CAT II
DC (continuous) 500A
RMS (sinusoidal) 500A
Peak 750A
