Bandwidth 30 MHz
Channels: 2
Maximum sampling rate 500MS/s
Record length 2.5k points at all-time bases
Vertical resolution 8 bits
Input sensitivity range 2 mV to 5 V/div on all models with calibrated fine adjustment
DC gain accuracy ±3%, from 10 mV/div to 5 V/div
Maximum input voltage 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz and above
Offset range 2 mV to 200 mV/div: ±1.8 V
>200 mV to 5 V/div: ±45 V
Bandwidth limit 20 MHz
Input coupling AC, DC, GND
Input impedance 1 MΩ in parallel with 20 pF
Vertical zoom Vertically expand or compress a live or stopped waveform
Input/Output ports
USB interface USB host port on front panel supports USB flash drives USB device port on back of instrument supports connection to PC and all
PictBridge®-compatible printers
GPIB interface Optional
Automatic measurements Period, Frequency, Pos Width, Neg Width, Rise Time, Fall Time, Maximum , Minimum , Peak-Peak, Mean, RMS, Cycle RMS,
Cursor RMS, Phase, Pos Pulse Cnt, Neg Pulse Cnt, Rise Edge Cn, Fall Edge Cn, Pos Duty, Neg Duty, Amplitude, Cycle Mean,
Cursor Mean, Burst Width, Pos Overshoot, Neg Overshoot, Area, Cycle Area, High, Low, Delay RR, Delay RF, Delay FR, Delay
FF
Autoset menu Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems, with undo Autoset
Square wave Single Cycle, Multicycle, Rising or Falling Edge
Sine wave Single Cycle, Multicycle, FFT Spectrum
Video (NTSC, PAL, SECAM) Field: All, Odd, or Even Line: All or Selectable Line Number
Frequency counter
Resolution 6 digits
Accuracy (typical) + 51 parts per million including all frequency reference errors and +1 count errors
Frequency range AC coupled, 10 Hz minimum to rated bandwidth

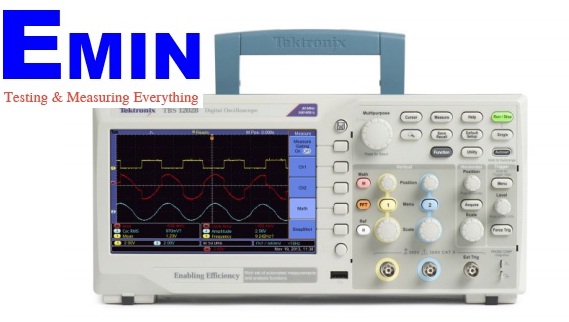

Model: TBS1032B
Warranty: 12 months
Manufacture: Tektronix
Bandwidth 30 MHz
Channels: 2
Maximum sampling rate 500MS/s
Record length 2.5k points at all-time bases
Vertical resolution 8 bits
Input sensitivity range 2 mV to 5 V/div on all models with calibrated fine adjustment
DC gain accuracy ±3%, from 10 mV/div to 5 V/div
Maximum input voltage 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz and above
Offset range 2 mV to 200 mV/div: ±1.8 V
>200 mV to 5 V/div: ±45 V
Bandwidth limit 20 MHz
Input coupling AC, DC, GND
Input impedance 1 MΩ in parallel with 20 pF
Vertical zoom Vertically expand or compress a live or stopped waveform
Input/Output ports
USB interface USB host port on front panel supports USB flash drives USB device port on back of instrument supports connection to PC and all
PictBridge®-compatible printers
GPIB interface Optional
Automatic measurements Period, Frequency, Pos Width, Neg Width, Rise Time, Fall Time, Maximum , Minimum , Peak-Peak, Mean, RMS, Cycle RMS,
Cursor RMS, Phase, Pos Pulse Cnt, Neg Pulse Cnt, Rise Edge Cn, Fall Edge Cn, Pos Duty, Neg Duty, Amplitude, Cycle Mean,
Cursor Mean, Burst Width, Pos Overshoot, Neg Overshoot, Area, Cycle Area, High, Low, Delay RR, Delay RF, Delay FR, Delay
FF
Autoset menu Single-button, automatic setup of all channels for vertical, horizontal, and trigger systems, with undo Autoset
Square wave Single Cycle, Multicycle, Rising or Falling Edge
Sine wave Single Cycle, Multicycle, FFT Spectrum
Video (NTSC, PAL, SECAM) Field: All, Odd, or Even Line: All or Selectable Line Number
Frequency counter
Resolution 6 digits
Accuracy (typical) + 51 parts per million including all frequency reference errors and +1 count errors
Frequency range AC coupled, 10 Hz minimum to rated bandwidth
