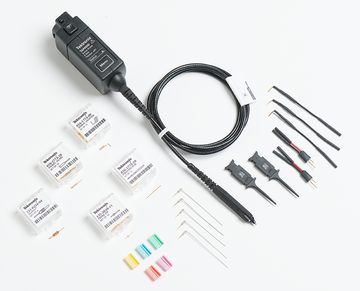

TEKTRONIX TAP4000 ໂພຣບທີ່ໃຊ້ງານຢູ່ (4 GHz)

Attenuation (probe only): 10X

DC attenuation accuracy (probe only): 10:1 ±2% (excludes offset error)

Typical characteristics:

Bandwidth (probe only): ≥4 GHz

Bandwidth (probe only): DC to ≥4 GHz

Rise time (probe only): ≤115 ps

Input capacitance: ≤0.8 pF

Input resistance: 40 kΩ

Input dynamic range: ±4.0 V

Input offset range: ±10 V

Maximum non-destructive input voltage: ±30 V (DC + peak AC)

Propagation delay: 5.3 ns

Physical characteristics:

Probe head size:

Height: 7.6 mm (0.30 in)

Width: 7.6 mm (0.30 in)

Length: 57.2 mm (2.25 in)

Other dimensions:

Cable length: 1300 mm (51 in)

Weight:

Unit: 1.55 kg (3.44 lbs); probes, accessories, and packaging

Net: 0.091 kg (0.2 lbs); probe only, using ME lab scale

Power requirements: The probe is powered directly by oscilloscopes with the TekVPI probe interface.

EMC, environment, and safety:

Temperature:

Operating: 0 °C to +50 °C (+32 °F to 122 °F)

Nonoperating: -40 °C to +71 °C (-40 °F to 160 °F)

Humidity:

Operating:

5% to 95% RH up to +30 °C (+86 °F)

5% to 85% RH at +30 °C to +50 °C (+86 °F to +122 °F), noncondensing

Nonoperating:

5% to 95% RH up to +30 °C (+86 °F)

5% to 85% RH at +30 °C to +75 °C (+86 °F to +167 °F), noncondensing

Altitude:

Operating: Up to 4,400 m (14,436 ft)

Nonoperating: Up to 12,192 m (40,000 ft)

Emissions compliance: EN 55011, Class A

Regulatory compliance labeling:

C-Tick (Australia/New Zealand)

CE (European Union)

WEEE (European Union)
