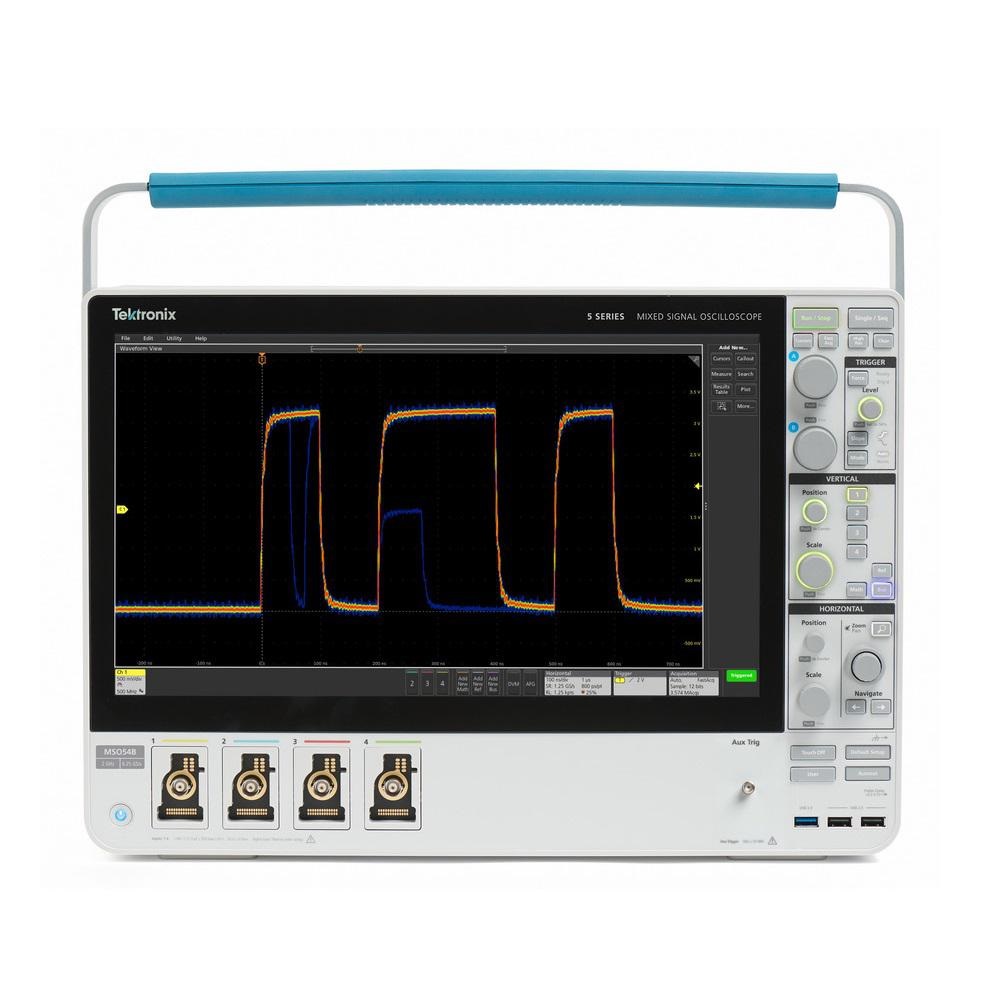

FlexChannel inputs: 8
Maximum analog channels: 8
Maximum digital channels (with optional logic probes): 64
Bandwidth (calculated rise time): 500 MHz (800 ps)
ADC resolution: 12 bits
Vertical resolution:
8 bits @ 6.25 GS/s
12 bits @ 3.125 GS/s
13 bits @ 1.25 GS/s (High Res)
14 bits @ 625 MS/s (High Res)
15 bits @ 312.5 MS/s (High Res)
16 bits @ ≤125 MS/s (High Res)
Sample rate: 6.25 GS/s on all analog / digital channels (160 ps resolution)
Record length (std.): 62.5 Mpoints on all analog / digital channels
Record length (opt.): 125, 250, or 500 Mpoints on all analog / digital channels
Waveform capture rate: >500,000 wfms/s
Arbitrary/Function Generator (opt.): 13 predefined waveform types with up to 100 MHz output
DVM: 4-digit DVM
Trigger frequency counter: 8-digit frequency counter
