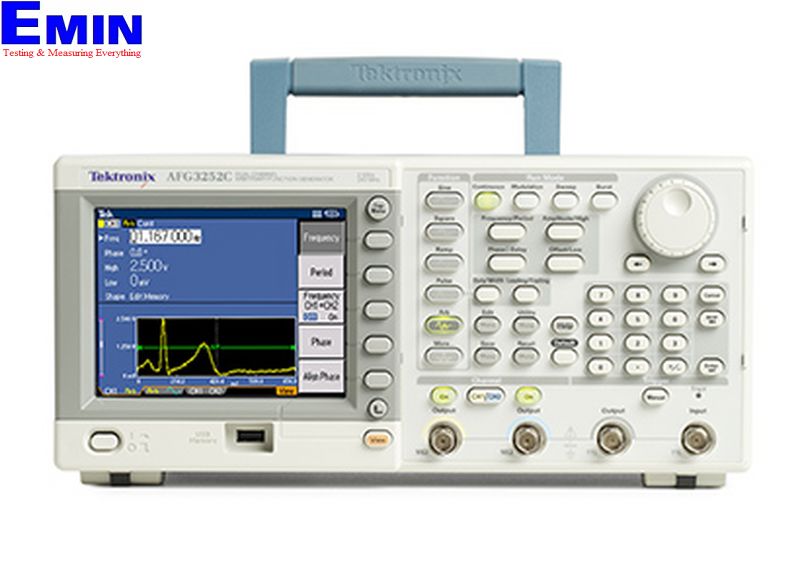

Tektronix AFG3251C Arbitrary Function Generators (240 MHz, 1CH, 250MS/s-2GS/s)
Manufaturer: Tektronix
Model: AFG3251C
Channels: 1
Waveforms: Sine, Square, Pulse, Ramp, Triangle, Sin(x)/x, Exponential Rise and Decay, Gaussian, Lorentz, Haversine, DC, Noise
Sample Rate: 2 to 16K:2GS/s >16 K to 128 K: 250 MS/s
Sine Wave: 1 µHz to 240 MHz
Square Wave: 1 µHz to 120 MHz
Ramp Wave: 1 µHz to 2.4 MHz
Pulse Wave: 1 mHz to 120 MHz
Other Waveforms: 1 µHz to 2.4 MHz
Arbitrary Waveforms: 1 mHz to 50 MHz
Amplitude Range (50Ω load): ≤200 MHz: 50 mVp-p to 5 Vp-p, >200 MHz: 50 mVp-p to 4 Vp-p
Range (open circuit or High Z): ≤200 MHz: 100 mVp-p to 10 Vp-p, >200 MHz: 100 mVp-p to 8 Vp-p
Modulation: AM, FM, PM, FSK, PWM
Display: 5.6 in. Color TFT LCD
Power Source: 100-240 V, 47-63 Hz
Power Consumption: Less than 120 W
Dimensions: 156.3 x 329.6 x 168.0 mm
Weight: 4.5 kg
Includes: Quick-start user manual, power cord, USB cable, CD-ROM with specifications and performance verification manual, programmer manual, service manual, LabView and IVI drivers, CD-ROM with ArbExpress™ software, and NIST-traceable calibration certificate. Please specify power plug when ordering.
The product has been discontinous.
