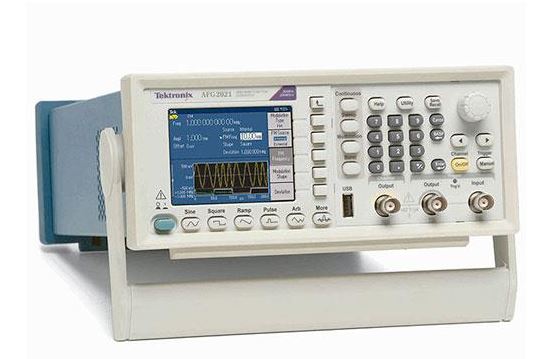

Channels: 1
Waveforms: Sine, Square, Pulse, Ramp, Noise, DC, Sin(x)/x, Gaussian,
Lorentz, Exponential Rise, Exponential Decay, and Haversine
sampling rate: 250 MS/s
Sine Wave 1 μHz to 20 MHz
Other Waveforms 1 μHz to 200 kHz
Amplitude, 50 Ω Load: 10 mVp-p to 10 Vp-p
Amplitude, Open Circuit: 20 mVp-p to 20 Vp-p
Modulation: AM, FM, PM
Pulse Width Modulation
Display: 3.5 in. Color TFT LCD
Power Source 100 V to 240 V, 50 Hz to 60 Hz
Power Consumption 60 W
Dimension: 104.2x241.8x419.1 mm
Weight: 2.87 kg
Includes: User Manual, Power Cord, USB Cable, CD-ROM with Programmer Manual, Service Manual, Labview and IVI Drivers, CD-ROM with ArbExpress®
Software, NIST-traceable Calibration Certificate.
