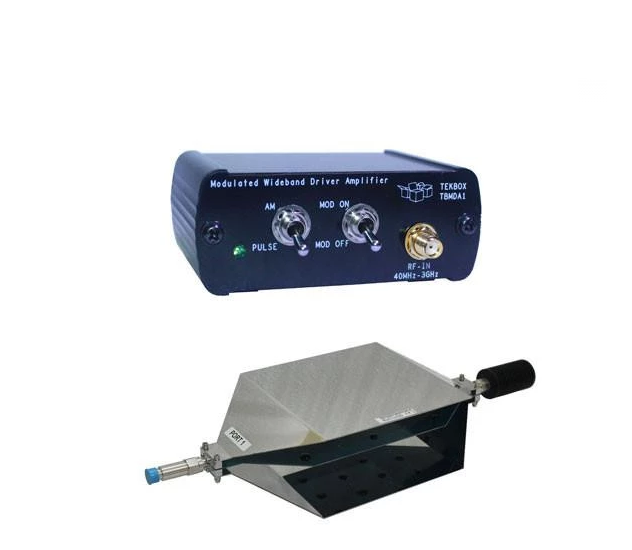

Specifications of TBTC1:
TEM cell dimensions:
Length: 390 mm
Width: 200 mm
Height: 108 mm
Septum height: 50 mm
Rectangular area under the septum: 19 cm x 13 cm x 5 cm
TEM cell connectors: N-female
Nominal cell impedance: 50 Ohm
Wave impedance: 377 Ohm
Maximum RF input power: 25W (limited by supplied 50 Termination)
Input return loss: S11 up to 1.2 GHz < -20dB, up to 2.1 GHz < -17dB, up to 3GHz < -14dB
Transmission loss: up to 1.4 GHz < 1 dB, up to 2.1 GHz < 3dB, up to 3 GHz < 6dB
Specifications of TBMDA1:
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 235mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +9dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +39dBm
3rd order output intercept point @ 2 GHz: +42dBm
Reverse isolation S12: -45dB
Noise Figure: 3 … 4 dB
Internal modulation frequency AM: 1 kHz ±10%
Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20%
Duty cycle, PM: 50% ±10% @ 1 kHZ; 12.5% ±20% @ 217 Hz
Gain:
25 MHz: 21.6 dB
50 MHz: 24.9 dB
100 MHz: 25.5 dB
500 MHz: 25.6 dB
1 GHz: 24.9 dB
1.5 GHz: 24.1 dB
2 GHz: 22.2 dB
2.5 GHz: 22.8 dB
3 GHz: 25.8 dB
