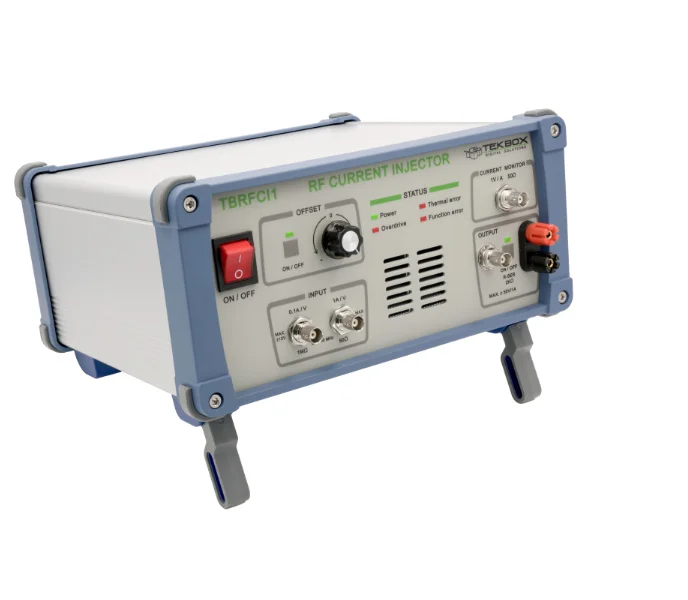

Tekbox TBRFCI1 ເຄື່ອງຂະຫຍາຍສັນຍານການນຳໄຟຟ້າ / ເຄື່ອງສີດກະແສໄຟຟ້າ (DC – 50 MHz)
General specification
Frequency range: DC – 50 MHz, useable up to 100 MHz
Transconductance: 0.1 A/V, 1 A/V
Operating temperature range: -20°C to +40°C
Dimensions: W 300 mm x H 150 mm x L 270 mm;
Weight: 6.6 kg
Input specification
Input impedance: 0.1 V/A input: 50 Ω 1 V/A input: 1 MΩ
Maximum input level: 0.1 V/A input: ±10 V 1 V/A input: ±1 V
Input connectors: BNC-female
Input protection: overdrive warning LED
Output specification
Output impedance: high impedance current source output
Offset: adjustable; ± 45 V
Output connector: 4 mm banana posts
Auxiliary output: BNC-female; parallel to output connector
Maximum output voltage: ±45 Vpeak
Maximum output current: ±1 A DC, 1 ARMS AC
Maximum output power: 45 W DC; 31.5 W AC (frequency and load impedance dependent)
Voltage/current bandwidth: load impedance dependent, see chapter 3.3
Rise time: load and amplitude dependent; 6 ns to 25 ns; see chapter 3.4
Current monitor output specification
Transimpedance: 1 V/A; typ. accuracy ±10% and linear phase up to 30 MHz
Output impedance: 50 Ohm
Output connector: BNC – female
Supply specification
Operating Voltage: 100 V – 120 V / 220 V – 240 V, 50 Hz / 60 Hz; switchable
Indicator LED: Power ON
Current consumption: 750 mA
Connector: EN 60320, C14
