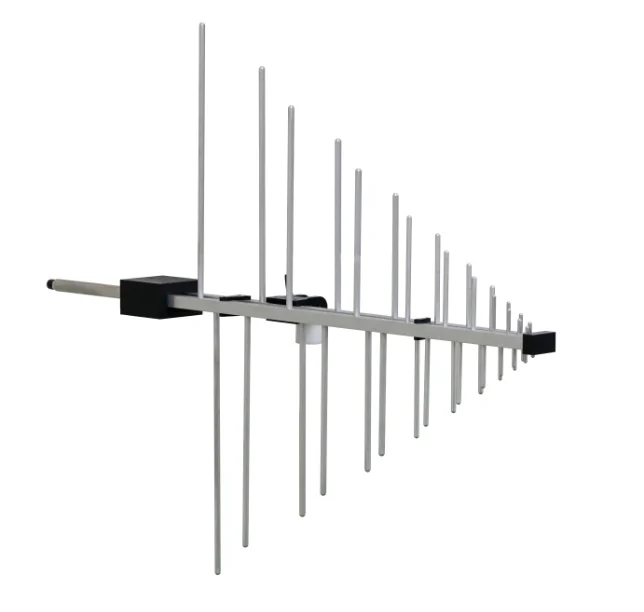

Tekbox TBMA7 ບັນທຶກເສົາອາກາດວັດແທກແຕ່ລະໄລຍະ (150 MHz – 3000 MHz)

Type: logarithmic periodic

Frequency range: 150 MHz– 3000 MHz

VSWR: < 2.1:1 over the entire frequency range ; 1.3:1 average

Isotropic gain at 3m spacing: 1.5 … 8 dBi

Antenna factor at 3m spacing: 10 … 34 dB/m

Maximum continuous input RF power: 130W

Nominal impedance: 50 Ω

RF Connector: N type female

Mounting: Tiltable adapter at center of gravity with ¼” tripod thread 22 mm diameter mounting shaft (tube)

Mechanical Dimensions: L x W x H: 1133 mm x 940 mm x 100 mm (44.6” x 37” x 3.94”)

Weight: 2.9 kg (6.39 lbs)
