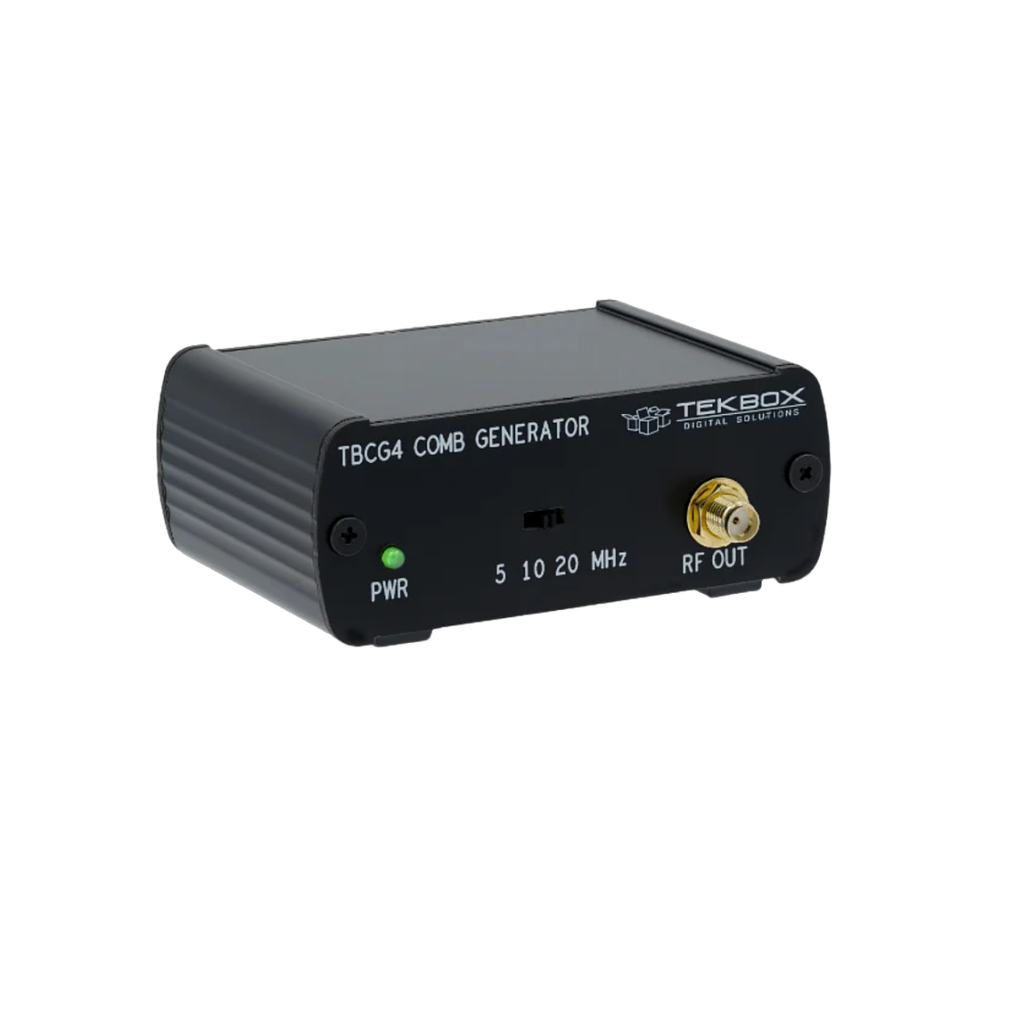

Tekbox TBCG4 ຈຸດປະສົງທົ່ວໄປ Comb Generator (5 MHz – 1 GHz)

Base frequencies: 5 MHz, 10 MHz, 25 MHz, selected via slide-switch on front panel

Characterized comb spectrum: 5 MHz – 1 GHz

Output amplitude of 20 MHz comb spectrum: – 19 dBm +/- 3 dB

Output amplitude of 10 MHz comb spectrum: – 28 dBm +/- 3 dB

Output amplitude of 5 MHz comb spectrum: – 38 dBm +/- 3 dB

Spectrum flatness from 5 MHz to 1 GHz: < 10 dB

Pulse rise time: < 300 ps

Output: 50 Ohm, SMA female

Power supply: USB C

Current consumption: 120 mA

Dimensions, L x W x H: 56 mm x 81 mm x 33 mm

Weight: 95g
