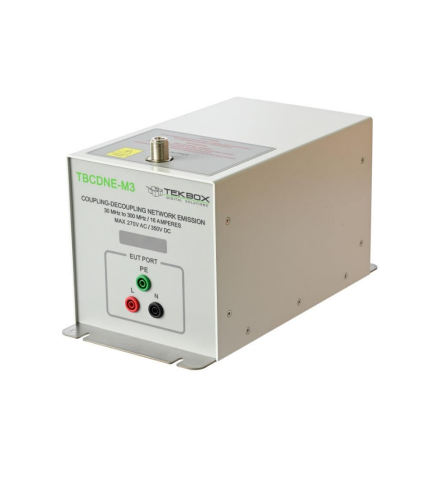

Tekbox TBCDNE-M3 Coupling Decoupling ການປ່ອຍອາຍພິດເຄືອຂ່າຍ (For Emission)
Compliance: CISPR 15 (IEC / EN 55015) Edition 9, CISPR 16-1-2, CISPR 16-2-1
Maximum supply voltage: 300V AC, 600V DC
Maximum current: 16A
Frequency range: 30 MHz – 300 MHz
Common mode impedance: 150 Ω +10 / - 20 Ω (EUT port)
Phase response: 0° ± 25° (EUT port)
Differential mode impedance: 100 Ω ± 20 Ω (EUT port)
Voltage Division Factor: 20 dB ± 1.5 dB (EUT to RF output)
AE to EUT decoupling: > 30 dB
AE to RF output decoupling: > 30 dB
RF output connector: N – female
EUT / AE connectors: 4 mm banana safety jacks, 4 mm slots in base plate for GND connection
Housing material: powder coated aluminium, stainless steel base plate
Dimensions: 300 x 150 x 150 mm
Weight: ca. 2.5 kg
Included: NIST traceable calibration data
Optional accessories: Adapter panel with shorting bar and N-connector
50 Ω to 150 Ω adapter panel for VDF measurement / calibration
OSL adapters for common mode impedance measurement / calibration
Balun and OSL adapters for differential mode impedance measurement /calibration
