Resistance Ranges and Test Currents
Full Scale Resolution Test Current
10.000 mΩ 1 μΩ 100 mA
100.00 mΩ 10 μΩ 10 mA
1.0000 Ω 100 μΩ 1 mA
10.000 Ω 1 mΩ 100 μA
100.00 Ω 10 mΩ 10 μA
Basic Accuracy*: ±(0.2% Reading + 0.02% Range)
Recommended Calibration Cycle: 1 year
Connector Type: M12
Display: 4-Digit Auto-Ranging with Backlight and Function Annunciators
Reading Rate: 3 readings / sec.
Battery Type: 3 AA (IEC LR6, ANSI 15) Alkaline
Battery Life: Standby: 100 hours; Operation @ 100 mA: 50 hours
Operating Environment:
Temperature: -10 to 55 °C / 14 to 131 °F
Humidity: 5 to 95%, 10 to 30 °C / 5 to 95%, 50 to 86 °F
Altitude: 0 to 4600 m / 0 to 15,092 ft.
Vibration: Random 10-500 Hz, 0.03 g/Hz
Shock: 30g Half Sine
Drop: 4 drops from 1m to concrete
Dimensions: 193 X 84 X 28 mm / 7.6 X 3.3 X 1.1 in.
Weight (including batteries): 303.2 g (10.7 oz.)
Warranty: 3 year Parts & Workmanship
Included: Accessories 3 AA Batteries, Quick Start Guide, Certificate of Traceability

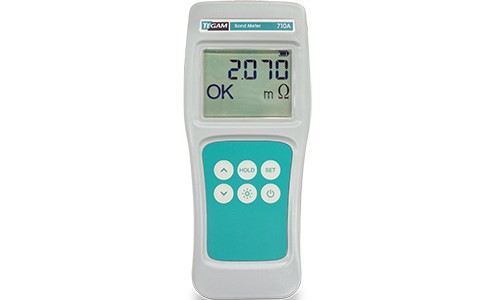

Certifications: Handheld Bond Meter for Hazardous Locations Only as to Intrinsic Safety
